AIR INTAKE,UNIVERSAL,4.0"

BRAND NEW FLOWMASTER DELTA FORCE PERFORMANCE UNIVERSAL AIR INTAKE, RED ELEMENT, 4" PIPES

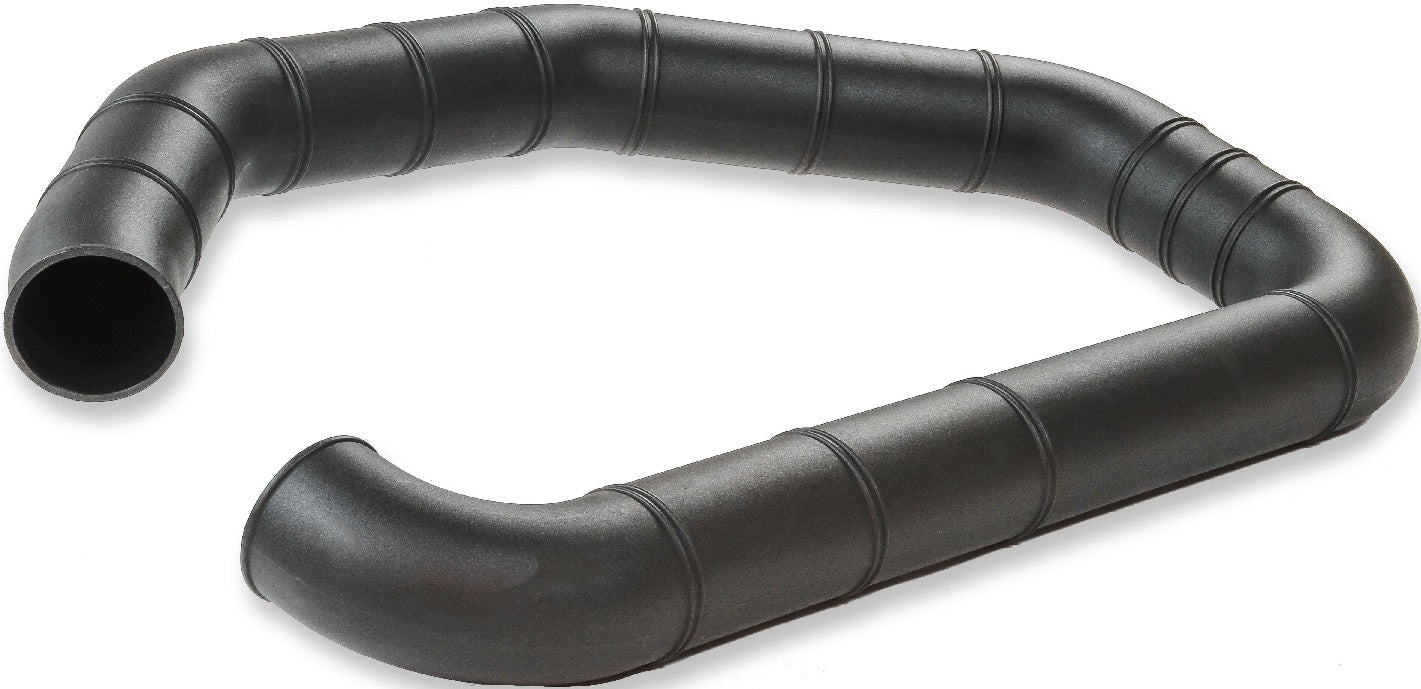

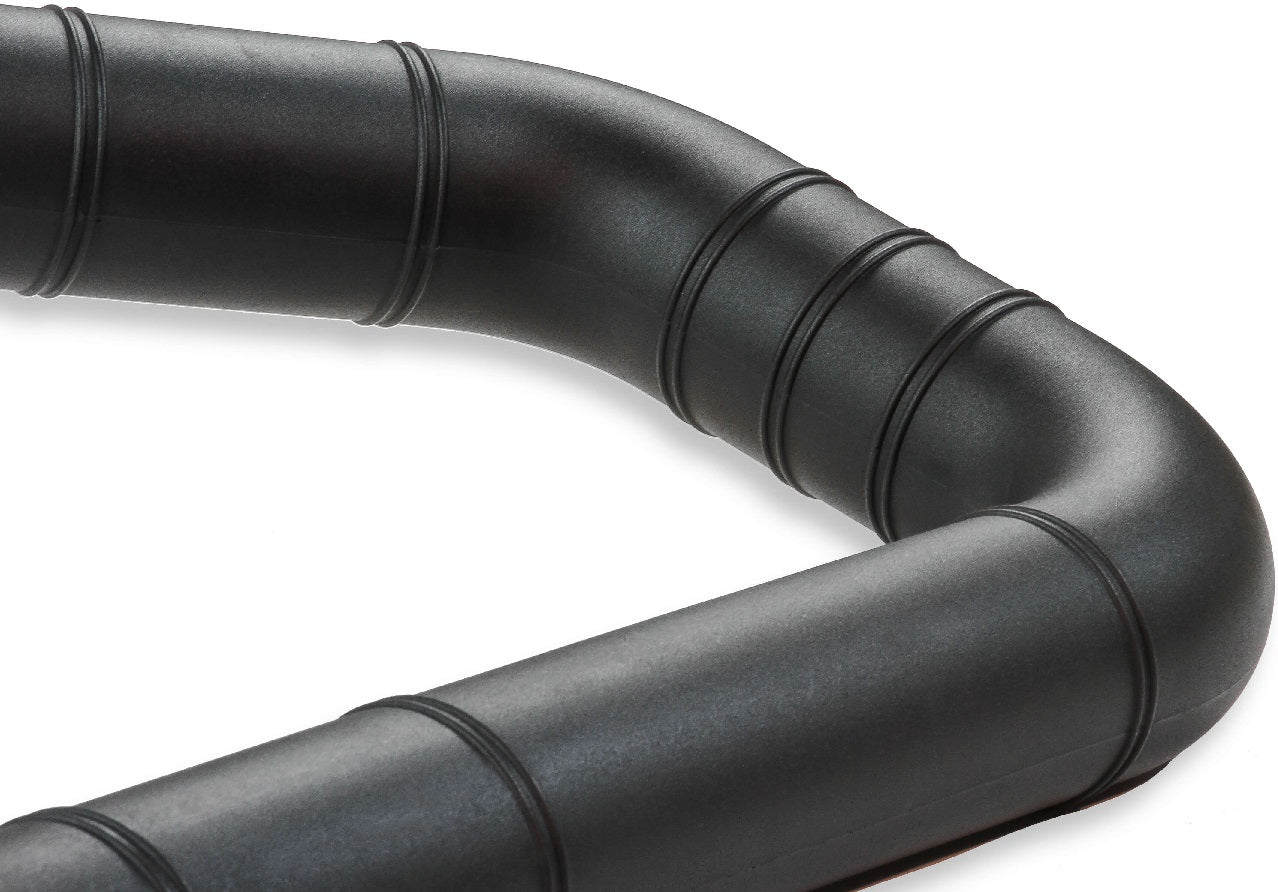

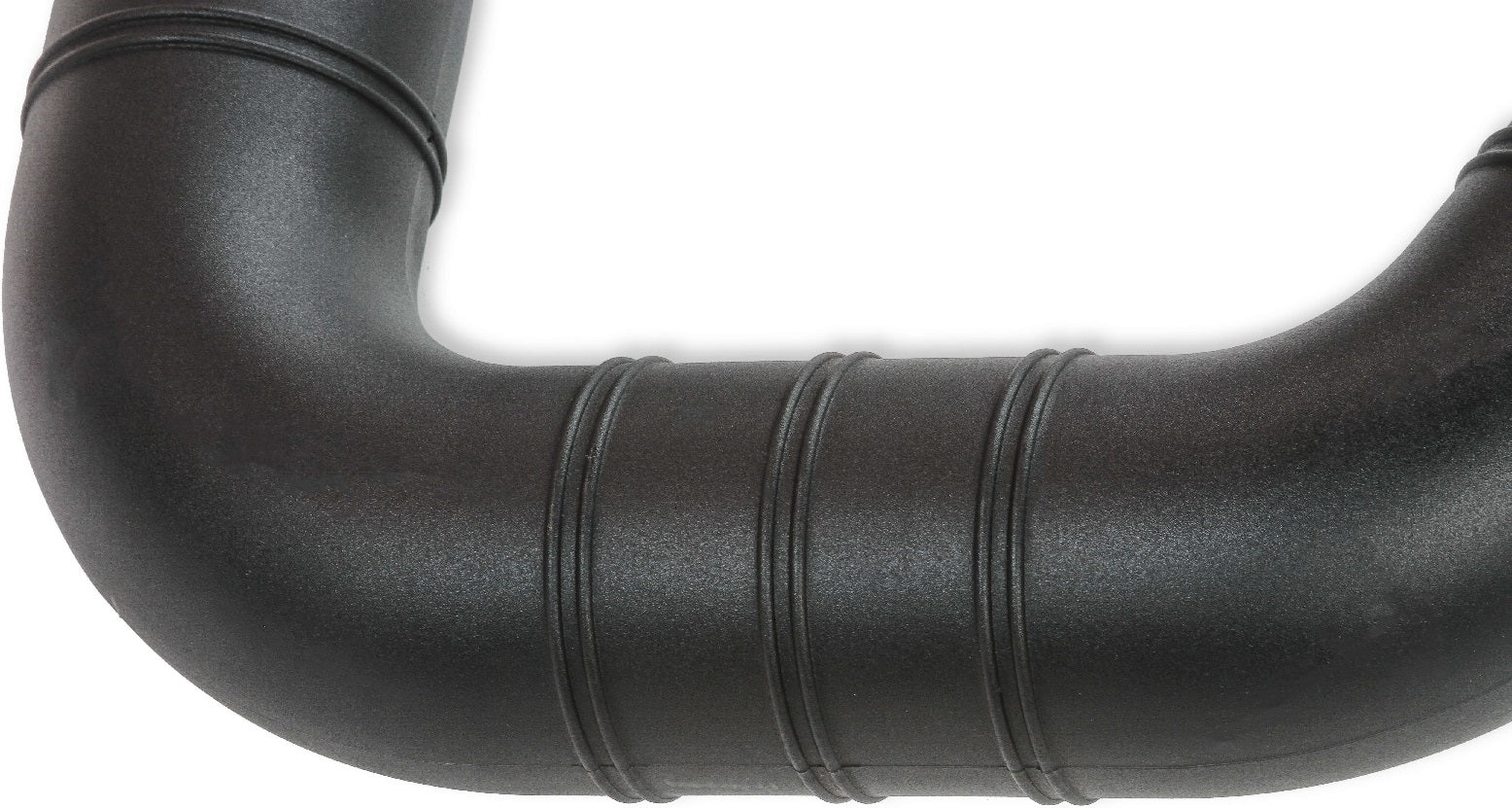

DELTA FORCE "U-FIT" AIR INTAKE KIT IS PERFECT FOR THE PERSON DOING AN ENGINE TRANSPLANT IN A "CLASSIC CAR" OR RACE VEHICLE & NEEDS A SOLUTION FOR FABRICATING A CUSTOM AIR INTAKE. THIS UNIVERSAL SYSTEM COMES COMPLETE WITH A CUSTOM MOLDED CROSS-LINKED POLYETHYLENE (XLPE) HIGH-FLOW 4" INTAKE TUBE WITH NUMEROUS PRE-SET CUT GUIDES & VARIOUS BEND ANGLES FOR VERSATILITY & ADAPTATION UNDER THE HOOD.

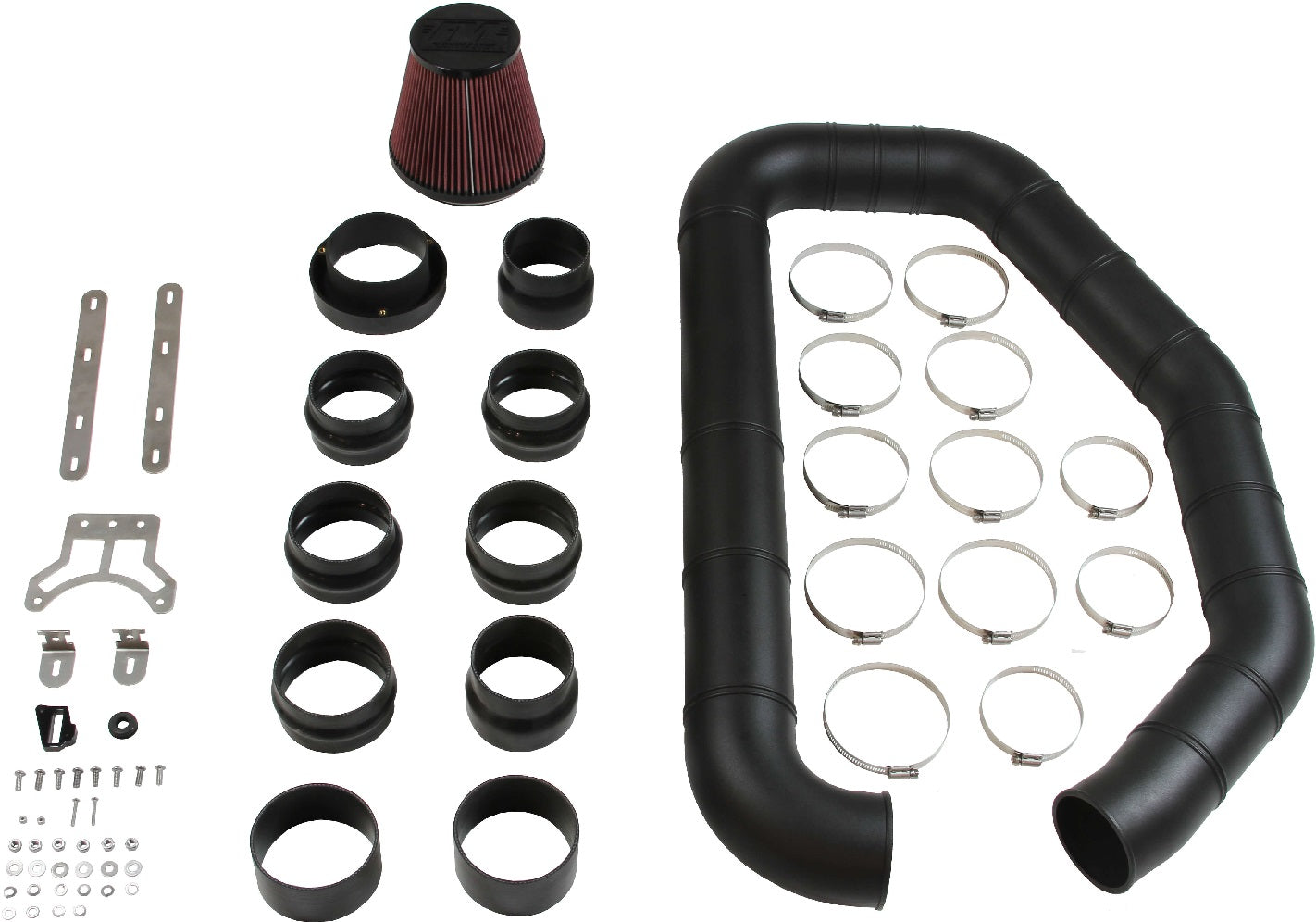

ALSO INCLUDES A LARGE DIAMETER HIGH-FLOW 8-LAYER COTTON GAUZE AIR FILTER, WHICH TRAPS MORE DIRT THAN TYPICAL 6-LAYER DESIGNS & COMES PRE-OILED & READY TO RUN. THE FILTER IS REUSABLE & SHOULD PROVIDE A LIFETIME OF SERVICE. INCLUDES A BLADE STYLE MAF SENSOR ADAPTER, VARIOUS SIZES OF HIGH QUALITY REINFORCED SILICONE COUPLERS, STAINLESS STEEL CLAMPS, UNIVERSAL BRACKETS & HARDWARE TO HELP FABRICATE A COMPLETE AIR INTAKE SYSTEM.

NOTE: SOME TUNING MAY BE REQUIRED. INTENDED FOR USE ON PRE-EMISSIONS VEHICLES, OR NON-STREET LEGAL COMPETITION RACE VEHICLES ONLY. FABRICATION REQUIRED.

NOTE: NOT A DIRECT FIT

FEATURES

• SERVICEABLE LIFETIME HIGH-FLOW 8 LAYER COTTON GAUZE FILTER
• ADJUSTABLE MOUNTING BRACKETS & HARDWARE
• UNIVERSAL PERFORMANCE AIR INTAKE SYSTEM
• INCLUDES REINFORCED SILICONE COUPLERS
• INCLUDES BLADE STYLE MAF ADAPTER
• CONTAINS VARIOUS BEND ANGLES
• NUMEROUS PRE-SET CUT GUIDES

SPECS:

• AIR BOX INCLUDED: NO
• AIR FILTER ELEMENT COLOR: RED
• AIR FILTER ELEMENT MATERIAL: OILED COTTON
• AIR FILTER ELEMENT WASHABLE: YES
• AIR FILTER HEAT SHIELD INCLUDED: NO
• AIR FILTER INSIDE DIAMETER: 6"
• AIR FILTER OIL INCLUDED: PRE-OILED
• AIR FILTER OUTLET SHAPE: CIRCULAR
• AIR FILTER OUTSIDE DIAMETER: 7.5"
• AIR FILTER OVERALL HEIGHT: 7.5"
• AIR FILTER OVERALL WIDTH: 7.5"
• CARB (CALIFORNIA) COMPLIANT: NO
• CLAMP QUANTITY INCLUDED: 12
• COUPLER MATERIAL: SILICONE
• COUPLER QUANTITY: INCLUDED
• EMISSION CODE: 3
• FILTER SHAPE: CONE
• FITMENT: UNIVERSAL
• INTAKE PIPE INLET WIDTH: 4
• INTAKE PIPE MATERIAL: POLYETHELENE
• INTAKE PIPE OUTLET WIDTH: 4
• MAF SENSOR ADAPTER INCLUDED: YES
• MOUNTING HARDWARE INCLUDED: YES
• PRODUCT TYPE: PERFORMANCE AIR INTAKES
• REPLACEMENT FILTER PART # (DRY): 615011D
• REPLACEMENT FILTER PART # (OILED): 615011
• SPECIAL FITMENT INFO: UNIVERSAL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS AIR INTAKE HERE.
