EDELBROCK CAMSHAFT KIT,PERFORMER-PLUS,AMC 290-401 V8.

BRAND NEW EDELBROCK PERFORMER PLUS CAMSHAFT KIT FOR 290-401 AMC V8 ENGINES

EDELBROCK PERFORMER-PLUS CAMSHAFT #2132 IS DESIGNED FOR 290-401 AMC V8 ENGINES AND PRODUCE OPTIMUM TORQUE FROM THE LOW-END TO THE MID-RANGE. PERFORMER-PLUS CAMSHAFTS SHOULD BE MATCHED WITH PERFORMER MANIFOLDS FOR VEHICLES OPERATING FROM OFF-IDLE TO 5500 RPM. THE PERFORMER-PLUS #2132 IS A SMOOTH IDLING CAM FOR DAILY DRIVERS, TRUCKS, VANS, RVS AND 4X4S. YOU CAN EXPECT A MAJOR IMPROVEMENT IN THROTTLE RESPONSE AND TORQUE.

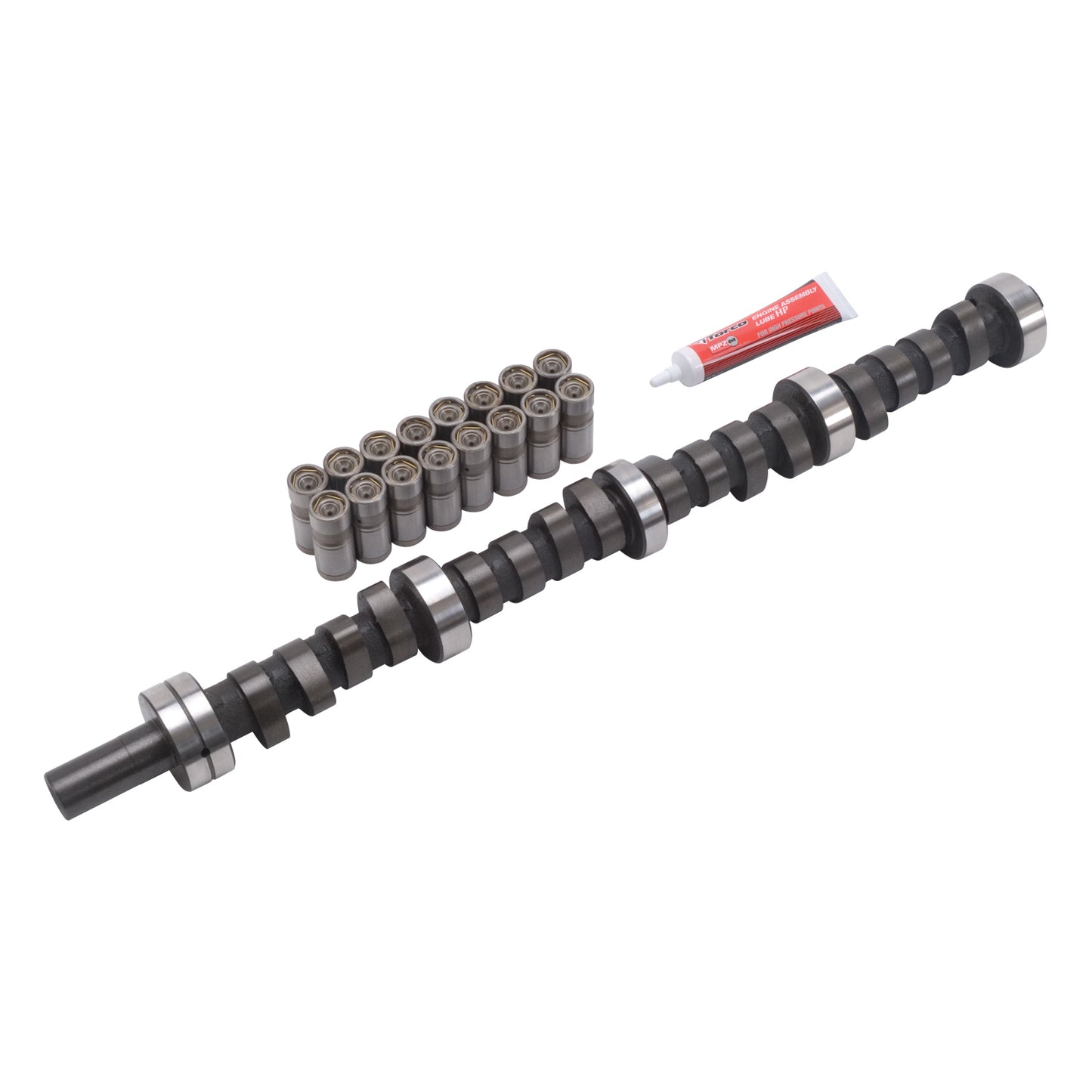

ALL CAMSHAFTS INCLUDE FLAT TAPPET LIFTERS, ASSEMBLY LUBE AND INSTRUCTIONS. THIS CAM PRODUCED 275 FT LBS OF TORQUE WHEN PAIRED WITH PERFORMER AMC INTAKE MANIFOLD #2131 AND STOCK CYLINDER HEADS. RECOMMENDED VALVE SPRINGS FOR OEM HEADS: EDELBROCK PART #5832 NON-ROTATOR/# 5932 ROTATOR

NOTE: IN ORDER FOR THIS PERFORMER-PLUS CAM AND LIFTER KIT TO BE COVERED UNDER ANY WARRANTY YOU MUST USE EITHER THE CORRECT EDELBROCK SURE SEAT VALVE SPRINGS OR THE STOCK ORIGINAL EQUIPMENT VALVE SPRINGS. OIL/ADDITIVE MUST CONTAIN ZINC DESIGNED FOR USE WITH FLAT TAPPET CAMSHAFTS.

NOTE: COAT CAM LOBES AND BOTTOMS OF EACH LIFTER WITH MOS2 LUBE (SUPPLIED) TO PREVENT CAM LOBE AND LIFTER WEAR FROM OCCURRING DURING INITIAL START-UP. DO NOT ALLOW THE ENGINE TO RUN UNDER 2000 RPM FOR THE FIRST 1/2 HOUR. SLOW IDLE SPEEDS MAY RESULT IN SEVERE CAM AND LIFTER WEAR. START THE ENGINE AND BRING TO BREAK-IN RPM.

CAMSHAFT SPECIFICATIONS:

• INTAKE DURATION: 204 DEGREES
• EXHAUST DURATION: 214 DEGREES
• INTAKE LIFT: .448"
• EXHAUST LIFT: .472"
• LOBE SEPARATION: 110 DEGREE
• INTAKE CENTER LINE: 105 DEGREE
• VACUUM: 15"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CAMSHAFT KIT HERE.
