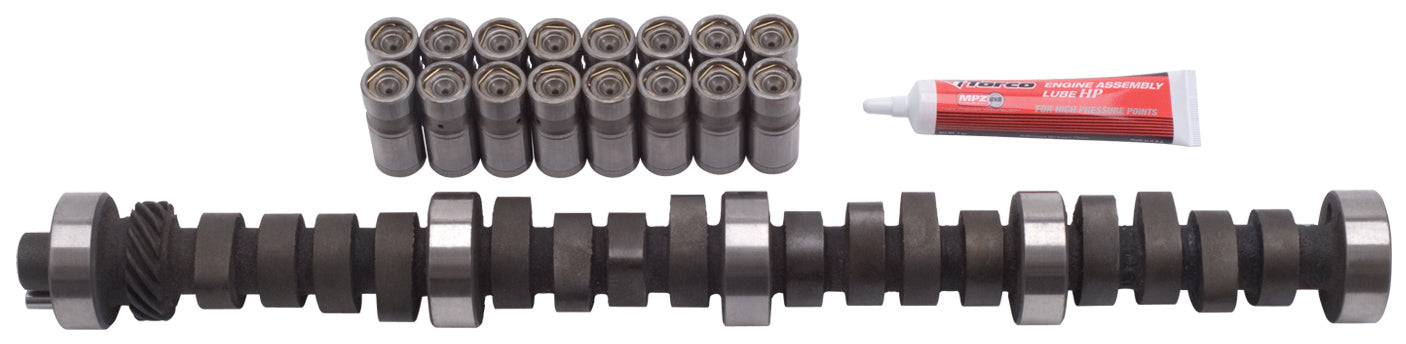

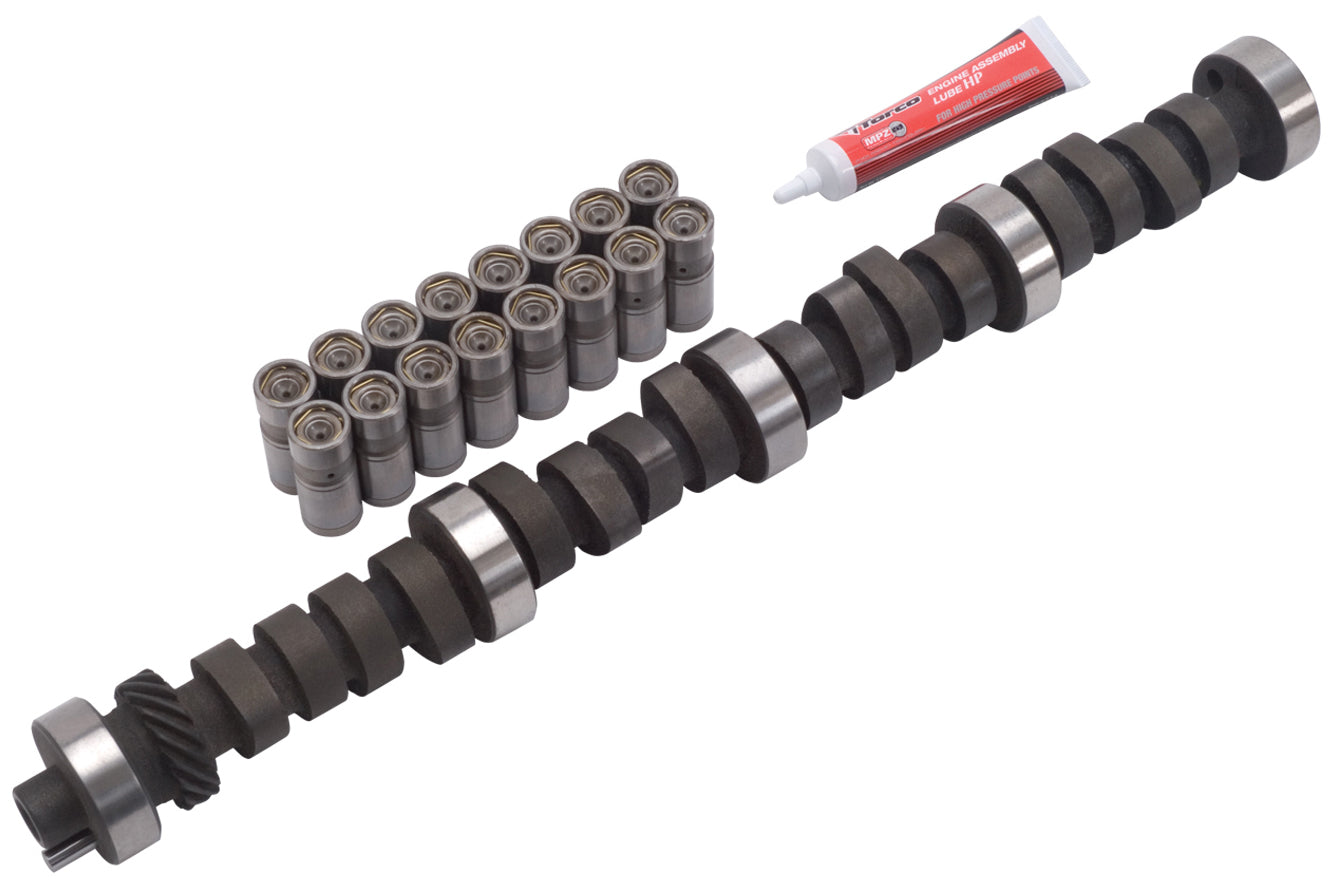

EDELBROCK CAMSHAFT KIT,PERFORMER-PLUS,SMALL-BLOCK FORD 289-302 V8

BRAND NEW EDELBROCK PERFORMER PLUS CAMSHAFT KIT FOR SMALL BLOCK FORD 289-302 V8 ENGINES

EDELBROCK PERFORMER-PLUS CAMSHAFT #2122 IS DESIGNED FOR 289-302 FORD V8 ENGINES AND PRODUCES OPTIMUM TORQUE FROM THE LOW-END TO THE MID-RANGE. PERFORMER-PLUS CAMSHAFTS SHOULD BE MATCHED WITH PERFORMER MANIFOLDS FOR VEHICLES OPERATING FROM OFF-IDLE TO 5500 RPM. THE PERFORMER-PLUS #2122 IS A SMOOTH IDLING CAM FOR DAILY DRIVERS, TRUCKS, VANS, RVS AND 4X4S. YOU CAN EXPECT A MAJOR IMPROVEMENT IN THROTTLE RESPONSE AND TORQUE.

NOTE: IN ORDER FOR THIS PERFORMER-PLUS CAM AND LIFTER KIT TO BE COVERED UNDER ANY WARRANTY YOU MUST USE EITHER THE CORRECT EDELBROCK SURE SEAT VALVE SPRINGS OR THE STOCK ORIGINAL EQUIPMENT VALVE SPRINGS. OIL/ADDITIVE MUST CONTAIN ZINC DESIGNED FOR USE WITH FLAT TAPPET CAMSHAFTS.

NOTE: COAT CAM LOBES AND BOTTOMS OF EACH LIFTER WITH MOS2 LUBE (SUPPLIED) TO PREVENT CAM LOBE AND LIFTER WEAR FROM OCCURRING DURING INITIAL START-UP. DO NOT ALLOW THE ENGINE TO RUN UNDER 2000 RPM FOR THE FIRST 1/2 HOUR. SLOW IDLE SPEEDS MAY RESULT IN SEVERE CAM AND LIFTER WEAR. START THE ENGINE AND BRING TO BREAK-IN RPM.

CAMSHAFT SPECIFICATIONS:

• INTAKE DURATION: 204 DEGREES
• EXHAUST DURATION: 214 DEGREES
• INTAKE LIFT: .448"
• EXHAUST LIFT: .472"
• LOBE SEPARATION: 112 DEGREE
• INTAKE CENTER LINE: 107 DEGREE
• VACUUM: 16"

FEATURES:

• INCLUDES FLAT TAPPET LIFTERS, ASSEMBLY LUBE AND INSTRUCTIONS
• THIS CAM PRODUCED 310HP AND 260 FT LBS OF TORQUE WHEN PAIRED WITH PERFORMER 289 INTAKE MANIFOLD #2121 AND PERFORMER CYLINDER HEADS #60329
• NOT FOR 1985 AND LATER ENGINES WITH ROLLER LIFTERS
• RECOMMENDED VALVE SPRINGS FOR OEM HEADS: EDELBROCK PART #5822 NON-ROTATOR / #5922 ROTATOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CAMSHAFT KIT HERE.
