VELOCITY SERIES,WHITE,67-72 CHEVY/GMC TRUCK

BRAND NEW CLASSIC INSTRUMENTS VELOCITY PACKAGE FOR 1967-1972 GM TRUCK (HOLLEY PART #CT67VSW).

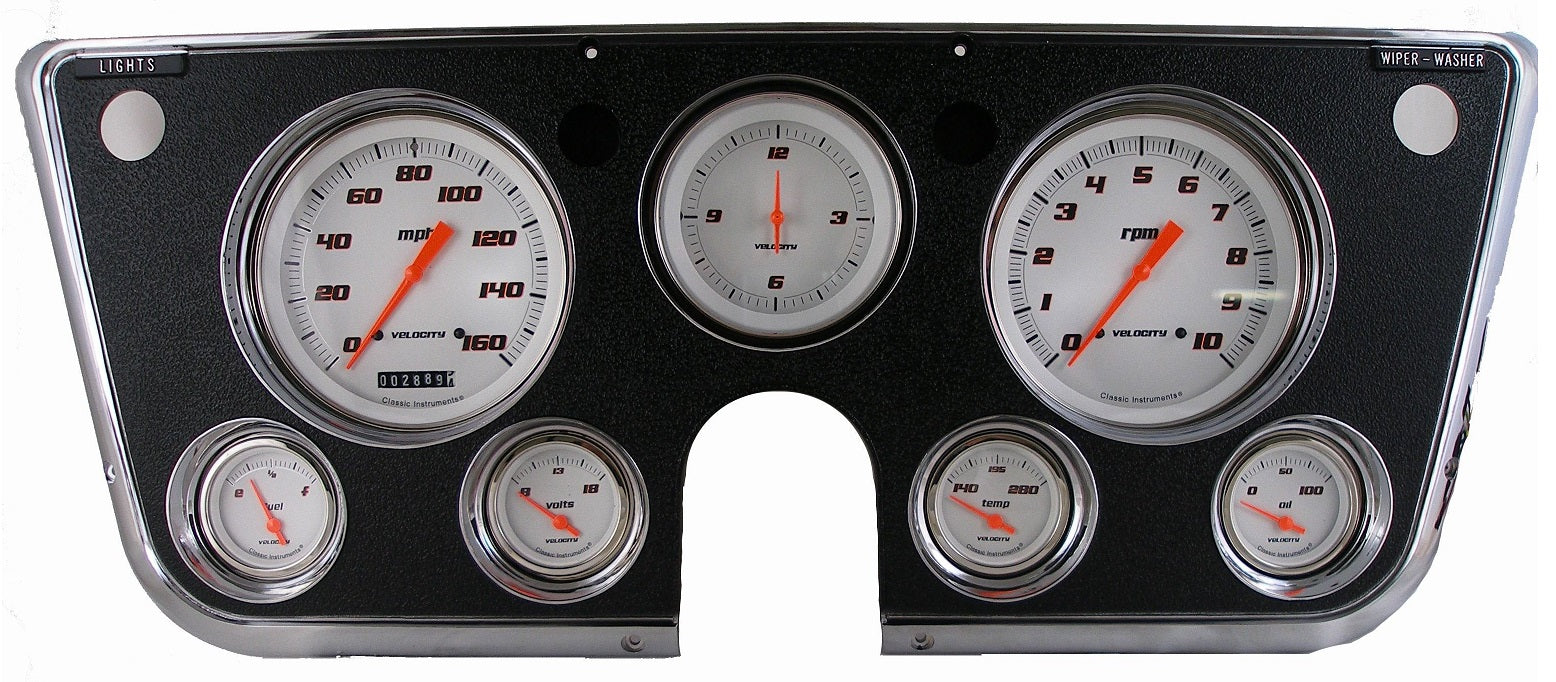

THE 1967-72 CHEVY TRUCK PACKAGE WITH OUR VELOCITY WHITE SERIES INSTALLED, FEATURES A 4 5/8" SPEEDOMETER AND TACHOMETER, 3 3/8" CLOCK, AND 2 1/8" FUEL (0-90 OHM), OIL, TEMP, AND VOLT GAUGES. A BLUE LED HIGH BEAM INDICATOR IS INSTALLED IN THE SPEEDOMETER. THE SET INCLUDES PRE-WIRED ELECTRICAL CONNECTIONS, MOUNTING HARDWARE, ALL NECESSARY* SENDING UNITS, AND A WIRING HARNESS CONSTRUCTED OF AUTOMOTIVE GRADE TXL WIRE, MACHINE-CRIMPED TERMINALS, TECH-FLEX SLEEVING, AND MOLEX MAIN CONNECTORS. IT IS EQUIPPED WITH OUR ZST AND WORKS DIRECTLY WITH ECM OR VSS SIGNALS SO NO ADDITIONAL CONTROL BOX IS NEEDED.

NOTE: FUEL SENDING UNIT NOT INCLUDED, FUEL GAUGE IS CALIBRATED TO STOCK 0-90 OHM.

NOTE: DASH BEZEL NOT INCLUDED (USES ORIGINAL DASH BEZEL)

COMPATIBLE WITH:

• CHEVROLET:
• 1967-1972 C10 PICKUP
• 1967-1972 C20 PICKUP
• 1967-1972 C30 PICKUP
• 1967-1972 C10 SUBURBAN
• 1967-1972 C20 SUBURBAN
• 1967-1972 K10 PICKUP
• 1967-1972 K20 PICKUP
• 1968-1972 K30 PICKUP
• 1967-1972 K10 SUBURBAN
• 1967-1972 K20 SUBURBAN
• 1969-1972 BLAZER
• GMC:
  • 1967-1972 C15/C1500 PICKUP
  • 1967-1972 C25/C2500 PICKUP
  • 1967-1972 C35/C3500 PICKUP
  • 1967-1972 C15/C1500 SUBURBAN
  • 1967-1972 C25/C2500 SUBURBAN
  • 1967-1972 K15/K1500 PICKUP
  • 1967-1972 K25/K2500 PICKUP
  • 1968-1972 K35/K3500 PICKUP
  • 1967-1972 K15/K1500 SUBURBAN
  • 1967-1972 K25/K2500 SUBURBAN
  • 1970-1972 JIMMY

FEATURES:

• LED LIGHTING WITH BUILT-IN LED DIMMER, AND MOLDED "LIGHT INTENSIFIER" RING FOR BRIGHT, EVEN LIGHTING. BRIGHTNESS OF THE LEDS CAN BE ADJUSTED WITH A POTENTIOMETER ON THE BACK OF THE CLUSTER
• TURN SIGNAL INDICATORS IN THE LEFT AND RIGHT SIDES OF CLUSTER, GREEN LEDS
• HIGH BEAM INDICATOR HIDDEN AT THE TOP OF THE TACHOMETER, RED LED HALOTM
• STANDARD GM SENDER KIT INCLUDED (TEMP., FUEL, OIL, SPEEDOMETER SENDERS), PART NO. SNGM

SPECS:

• BEZEL INCLUDED: NO
• BRAND: CLASSIC INSTRUMENTS
• FINISH: BLACK
• PRODUCT TYPE: GAUGE SET

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTION BOOKLET HERE.
