SBC,SERPENTINE CONVERSION,POLISHED PULLEYS,TOP MOUNT ALTERNATOR,KEYWAY PS,A/C

SBC,SERPENTINE CONVERSION,POLISHED PULLEYS,TOP MOUNT ALTERNATOR,KEYWAY PS,A/C

SKU:BSI FM2113PC

Regular price $1,149.99
Regular price Sale price $1,149.99
View full details

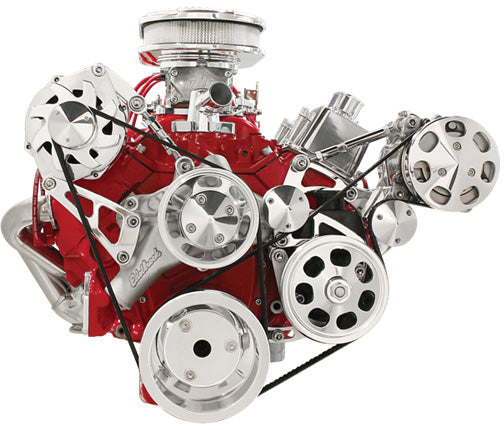

BRAND NEW SERPENTINE CONVERSION KIT WITH PULLEYS & BRACKETS FOR SMALL BLOCK CHEVYS. THIS KIT IS PRODUCED BY BILLET SPECIALTIES INC. (PART #FM2113PC).

THIS KIT MOUNTS THE POWER STEERING PUMP TO THE BLOCK ON THE DRIVERS SIDE, THE AIR CONDITIONING COMPRESSOR TO THE CYLINDER HEAD ON THE DRIVERS SIDE, AND THE ALTERNATOR ON THE TOP PASSENGERS SIDE.

THESE CONVERSION KITS DONT INCLUDE THE ACTUAL ALTERNATOR, POWER STEERING PUMP, WATER PUMP, A/C COMPRESSOR, OR BELTS. SEE THE CONTENTS BELOW.

THIS KIT IS FOR USE WITH:

  • SANDEN 508 A/C COMPRESSORS WITH A SERPENTINE PULLEY; THIS KIT WONT FIT COMPRESSORS WITH A SINGLE-GROOVE V-BELT PULLEY
  • LONG WATER PUMPS
  • GM 10SI OR 12SI ALTERNATORS
    • THESE ALTERNATORS WERE POPULAR ON NUMEROUS GM VEHICLES FROM 1962-1994
    • THEY HAVE A 2 BOLT MOUNTING PATTERN (ONE AT 12 OCLOCK AND ONE AT 6 OCLOCK) THAT MEASURE 168MM (OR 6.61") CENTER-TO-CENTER; SEE THE DIAGRAM BELOW
  • SAGINAW TYPE 1 POWER STEERING PUMP THAT ACCEPTS A KEYWAY PULLEY
    • THESE TYPE 1 PUMPS WERE MADE TO ACCEPT 2 DIFFERENT PULLEYS:
      • A KEYWAY PULLEY: WITH THIS VERSION, THE PUMP SHAFT HAS A RECTANGLE KEY THAT DRIVES THE PULLEY AND THREADS ON THE END FOR A NUT TO SCREW ON TO HOLD THE PULLEY ON; IF YOUR PUMP SHAFT HAS A KEY AND THREADS, THEN YOU HAVE THE KEYWAY VERSION AND THIS IS THE VERSION THAT THIS PARTICULAR BILLET SPECIALTIES SYSTEM WILL FIT.
      • A PRESS-ON PULLEY: WITH THIS VERSION, THE PUMP SHAFT IS SMOOTH AND THE PULLEY IS VERY TIGHTLY PRESSED ON; THAT PRESS-FIT HOLDS THE PULLEY ON, AS WELL AS DRIVES THE PULLEY. IF THIS IS THE PUMP THAT YOU HAVE, WE DO HAVE THE SYSTEM THAT WILL FIT IT HERE.
      • YOU CAN SEE EXAMPLES OF BOTH OF THESE PUMPS BELOW, AS WELL AS AN EXAMPLE OF THE SAGINAW TYPE 2 PUMP, WHICH WILL NOT WORK WITH THIS KIT
    • THIS TYPE 1 KEYWAY PUMP WAS THE POWER STEERING PUMP ON ALMOST ALL OF THE FOLLOWING APPLICATIONS:
      • 1968-1974 AMC
      • 1963-1974 GM PASSENGER CARS, AND FULL-SIZE CHEVY CARS AS EARLY AS 1961
      • 1963-1974 CHEVY AND GMC LIGHT-DUTY TRUCKS
      • SOME 1965-1974 CHRYSLER VEHICLES
      • SOME 1972-1974 FORD CARS
      • SOME 1972-1974 IHC TRUCKS
      • SOME 1972-1974 JEEPS
      • AMONG MANY OTHERS

GENUINE BILLET SPECIALTIES STYLE, QUALITY, FIT AND FINISH ARE ENGINEERED INTO THESE SERPENTINE CONVERSION KITS. ALL BRACKETS AND PULLEYS ARE MACHINED FROM 6061-T6 BILLET ALUMINUM & POLISHED TO A MIRROR FINISH. DESIGNED TO BOLT RIGHT ON AND ALIGN CORRECTLY. KITS INCLUDE: STAINLESS STEEL HARDWARE, POLISHED STAINLESS TURNBUCKLES AND HIGH QUALITY ROD ENDS.

THIS SET INCLUDES:

  • AIR CONDITIONER COMPRESSOR BRACKET
  • AIR CONDITIONER CLUTCH COVER
  • ALTERNATOR BRACKET
    • MOUNTS ALTERNATOR ON TOP PASSENGERS SIDE
    • POLISHED
  • ALTERNATOR PULLEY
    • INCLUDES FAN & NOSE CONE
    • POLISHED
  • WATER PUMP PULLEY
    • INCLUDES NOSE CONE
    • POLISHED
  • CRANK PULLEY
    • POLISHED
  • POWER STEERING PUMP BRACKET
    • POLISHED
  • POWER STEERING PUMP PULLEY
    • POLISHED
  • TWO IDLER PULLEYS TO PROVIDE TENSION
  • STAINLESS STEEL HARDWARE
  • COMPREHENSIVE INSTALLATION INSTRUCTIONS
  • BILLET SPECIALTIES DOESNT INCLUDE THE BELTS WITH THESE KITS
    • FOR THE ALTERNATOR & WATER PUMP, THEY RECOMMEND USING A SERPENTINE 6 RIB BELT, 44.5" LONG (GOODYEAR #4060445 OR DAYCO #5060445)
    • FOR THE POWER STEERING PUMP & A/C COMPRESSOR, THEY RECOMMEND USING A SERPENTINE 6 RIB BELT, 55.5" LONG (GOODYEAR #4060555 OR DAYCO #5060555)

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.

SAGINAW TYPE 1 POWER STEERING PUMP WITH KEYWAY PULLEY, NOTICE THE THREADS AND NUT ON THE END OF THE SHAFT (THIS IS THE SERIES OF PUMP THAT THIS BILLET PULLEY FITS):

SAGINAW TYPE 1 POWER STEERING PUMP WITH PRESS-ON PULLEY (THIS PARTICULAR PULLEY WILL NOT FIT THIS SERIES OF PUMP):

SAGINAW TYPE 2 POWER STEERING PUMP (THIS PULLEY WILL NOT FIT THIS SERIES OF PUMP EITHER):
