09-13 FORD F-150,5100 ADJUSTABLE

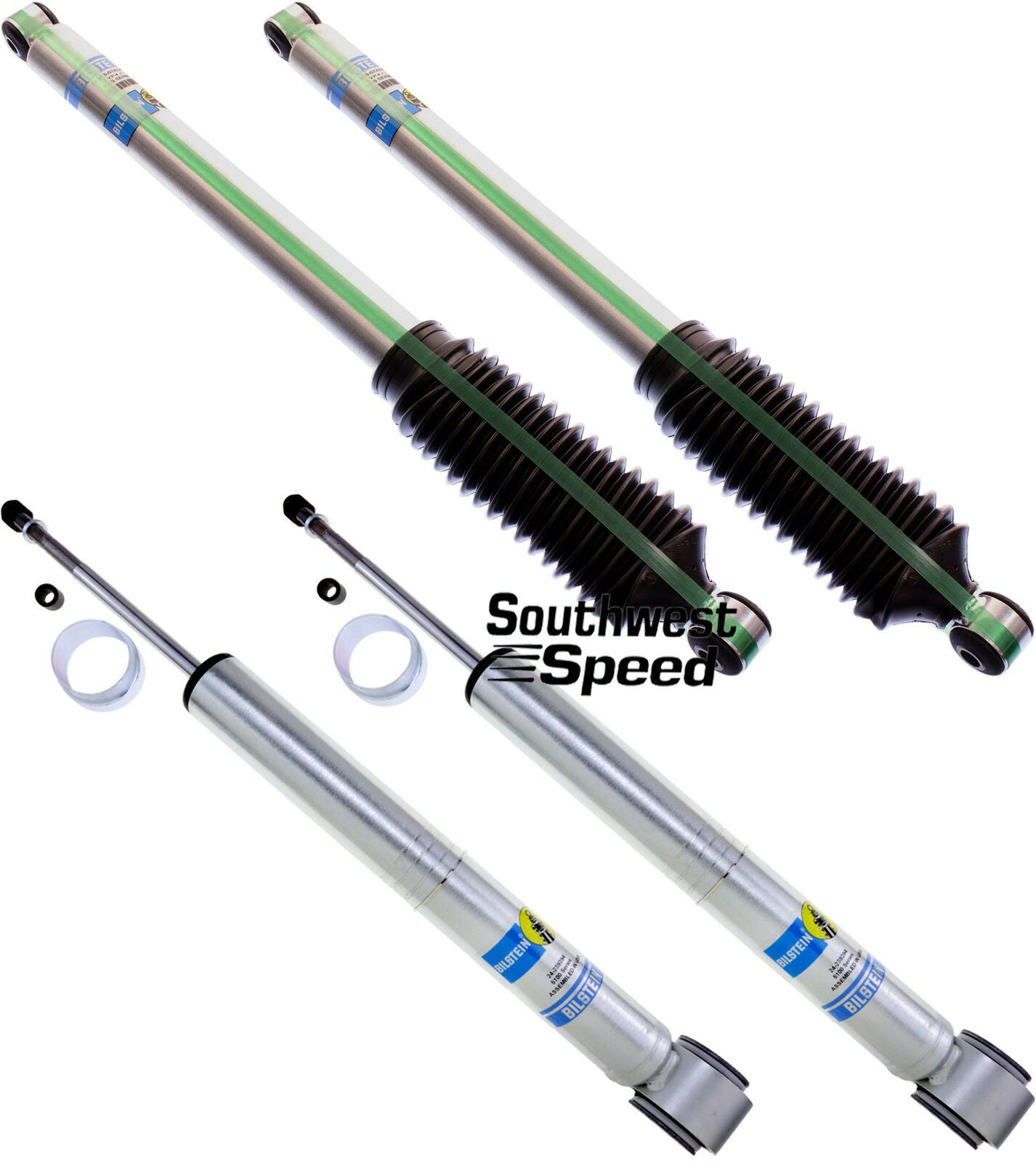

BRAND NEW SET OF BILSTEIN 46MM MONOTUBE B8 5100 SERIES SHOCK ABSORBERS, 2 FRONTS AND 2 REAR, FITS 2009-2013 FORD F-150

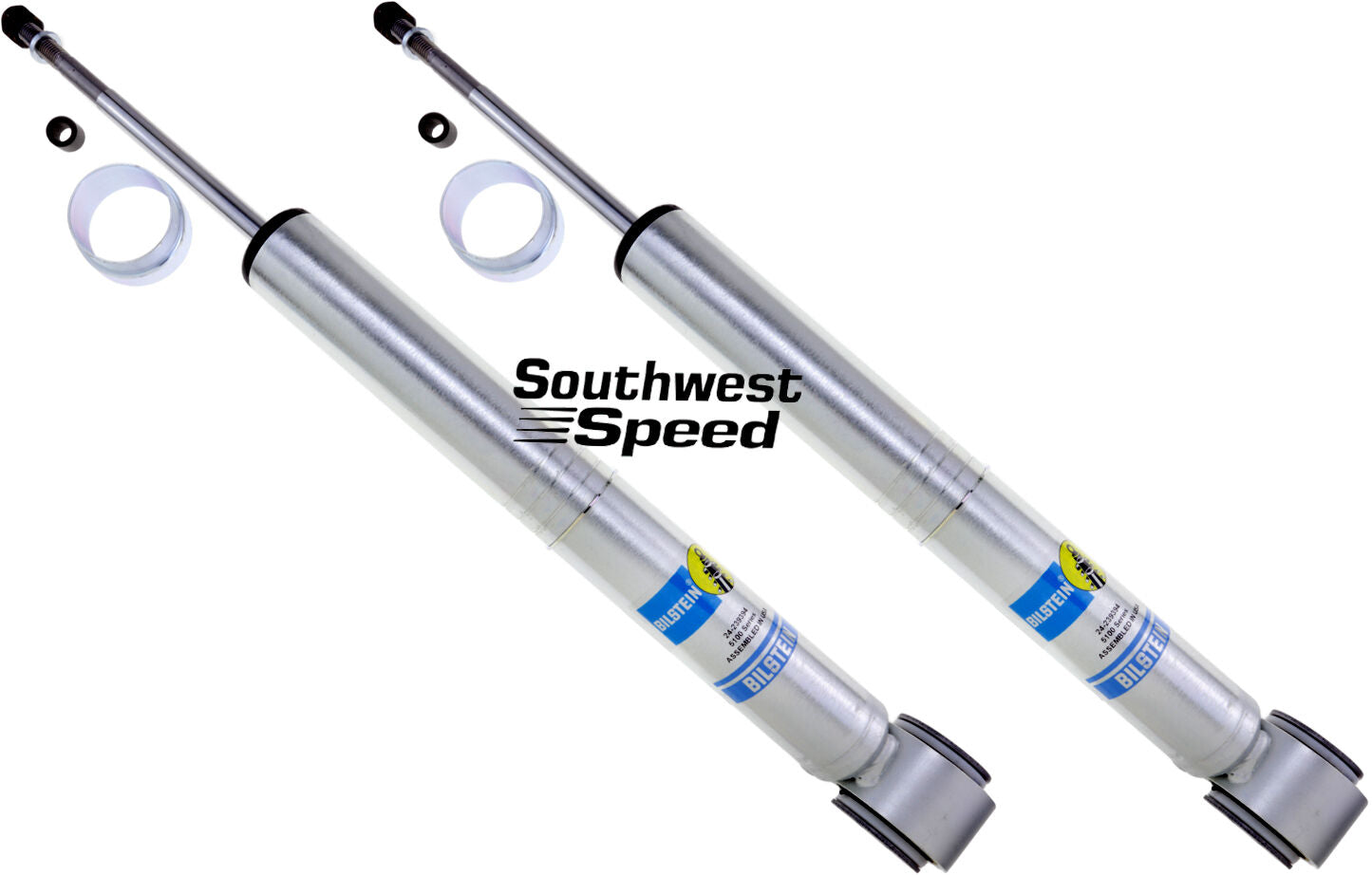

THE FRONT BILSTEIN B8 5100 (RIDE HEIGHT ADJUSTABLE) SHOCK ABSORBERS ARE DESIGNED FOR TRUCKS AND SUVS WITH A FRONT OE COILOVER STYLE SUSPENSION. MULTIPLE SNAP-RING GROOVES IN THE BODY ALLOW FOR DIFFERENT SPRING SEAT POSITIONS, PROVIDING 0-2.75 INCHES OF FRONT LIFT (DEPENDING ON APPLICATION). THE MONOTUBE SHOCK ABSORBERS FEATURE A 46MM DIGRESSIVE PISTON A WITH SELF-ADJUSTING DEFLECTIVE DISC VALVE SETTING. BILSTEIN B8 5100 (RIDE HEIGHT ADJUSTABLE) SHOCK ABSORBERS PROVIDE INCREASED WHEEL TRAVEL AND IMPROVED HANDLING. UTILIZING A B8 5100 (RIDE HEIGHT ADJUSTABLE) SHOCK ABSORBER IS THE EASIEST WAY TO LEVEL OUT YOUR VEHICLE.

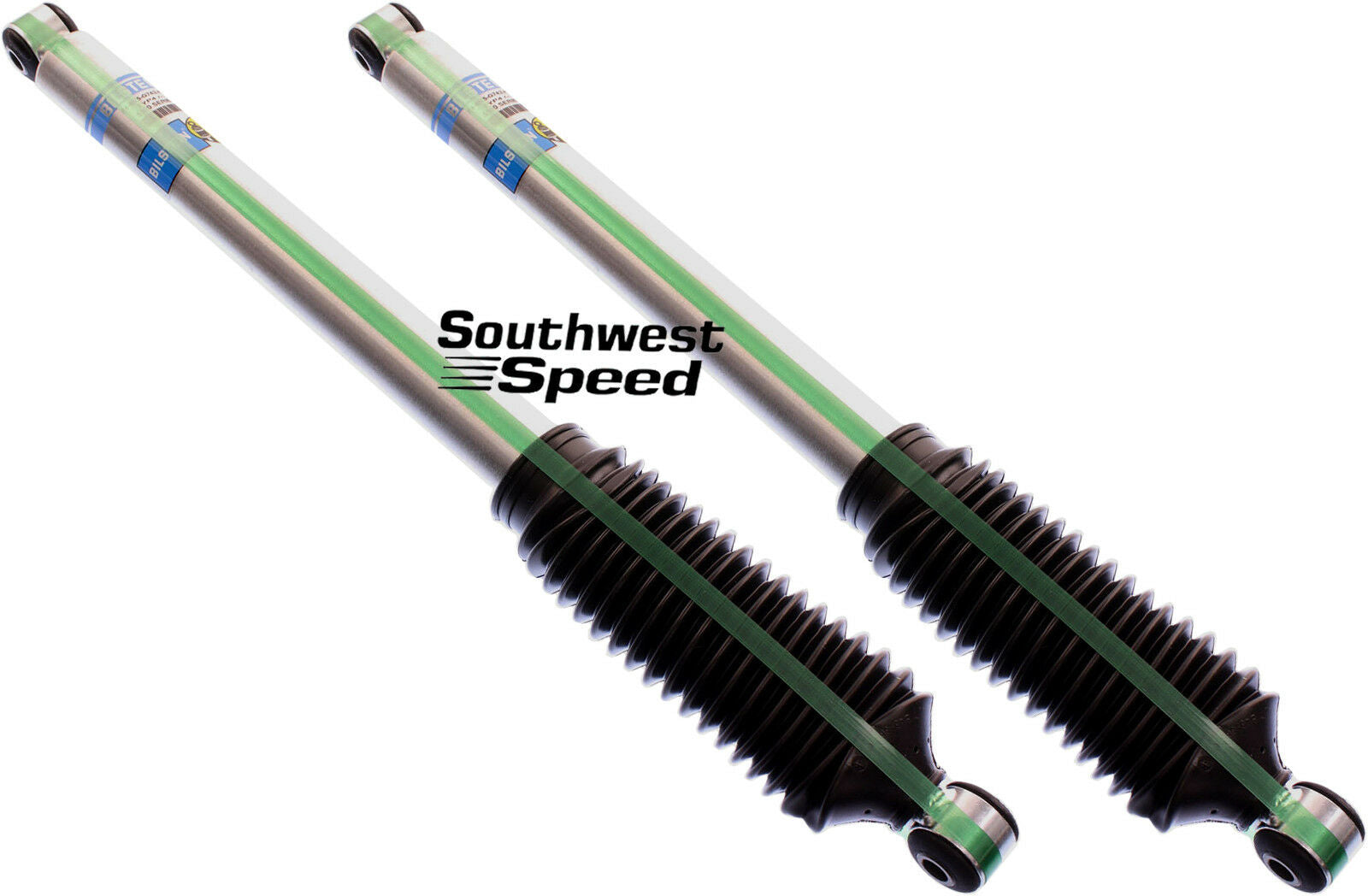

THE REAR BILSTEIN B8 5100 SHOCK ABSORBERS ARE DESIGNED AS A DIRECT FIT SOLUTION FOR LIFTED TRUCKS AND SUVS. THESE SHOCK ABSORBERS FEATURE A MONOTUBE DESIGN WHICH PROVIDES CONSISTENT FADE FREE PERFORMANCE. B8 5100 SHOCK ABSORBERS UTILIZE A UNIQUE, VELOCITY SENSITIVE, DIGRESSIVE PISTON WHICH REACTS TO CHANGING ROAD CONDITIONS. ALL B8 5100 SHOCK ABSORBERS ARE TUNED FOR EACH SPECIFIC APPLICATION TO ASSURE OPTIMAL PERFORMANCE IS ACHIEVED. B8 5100 SHOCK ABSORBERS OFFER A SIGNIFICANT IMPROVEMENT IN RIDE QUALITY, HANDLING, AND COMFORT.

NOTE: BILSTEIN OLD PART NUMBER ON THE FRONT SHOCKS WAS 24-187497, BE5-G742, & F4-BE5-G742-H0 ON THE REAR SHOCKS.

FITS:

• FORD:
• 2009-2010 F-150 FX4 V8 5.4L
• 2011-2013 F-150 FX4 V6 3.5L
• 2011-2013 F-150 FX4 V8 5.0L
• 2013 F-150 FX4 V8 6.2L
• 2010 F-150 HARLEY-DAVIDSON EDITION V8 5.4L
• 2011-2012 F-150 HARLEY-DAVIDSON EDITION V8 6.2L
• 2009-2010 F-150 KING RANCH V8 5.4L
• 2011-2013 F-150 KING RANCH V6 3.5L
• 2011-2013 F-150 KING RANCH V8 5.0L
• 2009-2010 F-150 LARIAT V8 5.4L
• 2011-2013 F-150 LARIAT V6 3.5L
• 2011-2013 F-150 LARIAT V8 5.0L
• 2011-2013 F-150 LARIAT V8 6.2L
• 2011 F-150 LARIAT LIMITED V8 6.2L
• 2013 F-150 LIMITED V6 3.5L
• 2009-2010 F-150 PLATINUM V8 5.4L
• 2011-2013 F-150 PLATINUM V6 3.5L
• 2011-2013 F-150 PLATINUM V8 6.2L
• 2011-2013 F-150 PLATINUM V8 5.0L
• 2009-2010 F-150 STX V8 4.6L
• 2011-2013 F-150 STX V6 3.7L
• 2011-2013 F-150 STX V8 5.0L
• 2009-2010 F-150 XL V8 4.6L
• 2009-2010 F-150 XL V8 5.4L
• 2011-2013 F-150 XL V6 3.5L
• 2011-2013 F-150 XL V6 3.7L
• 2011-2013 F-150 XL V8 5.0L
• 2009-2010 F-150 XLT V8 4.6L
• 2009-2010 F-150 XLT V8 5.4L
• 2011-2013 F-150 XLT V6 3.5L
• 2011-2013 F-150 XLT V6 3.7L
• 2011-2013 F-150 XLT V8 5.0L

INCLUDES:

• 2 - BILSTEIN #24-239394 FRONT SHOCK ABSORBERS, 46MM B8 5100 (RIDE HEIGHT ADJUSTABLE)
• 2 - BILSTEIN #33-187501 REAR SHOCK ABSORBERS, 46MM B8 5100

SPECS:

• FRONT:
• SERIES: B8 5100 (RIDE HEIGHT ADJUSTABLE)
• COLLAPSED LENGTH (IN): 16.93
• EXTENDED LENGTH (IN): 21.83
• COLLAPSED LENGTH (MM): 430
• EXTENDED LENGTH (MM): 554.50
• FINISH: ZINC PLATED
• RESERVOIR: NO
• BODY DESIGN: 46MM ID SNAP RING GROOVED BODY (COILOVER)
• REAR:
• SERIES: B8 5100
• COLLAPSED LENGTH (IN): 17.68
• EXTENDED LENGTH (IN): 28.90
• COLLAPSED LENGTH (MM): 449
• EXTENDED LENGTH (MM): 734
• FINISH: ZINC PLATED
• RESERVOIR: NO
• BODY DESIGN: 46MM ID SMOOTH BODY (NON-COILOVER)

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THE FRONT SHOCKS HERE.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THE REAR SHOCKS HERE.
