CLUTCH LINKAGE KIT,56 CHEVY

KIT INCLUDES:

• SOUTHWEST SPEED CLUTCH BELL HOUSING BRACKET
• INCLUDES THE 3/4" DIAMETER PIVOT STUD

• FACTORY REPRODUCTION

• LENGTH: 7 7/8"

• WIDTH: 1 3/8"

• THICKNESS: 1/4"

• ONE END BOLTS TO THE CLUTCH BELL HOUSING & OTHER END CONNECTS TO THE CLUTCH CROSS SHAFT "Z" BAR FOR ADDED SUPPORT
• FABRICATED FROM STEEL
• SOUTHWEST SPEED CLUTCH CROSS SHAFT "Z" BAR
• SWIVELS ON THE TWO 3/4" DIAMETER PIVOT BALLS

• FACTORY REPRODUCTION

• WIDTH: 6"

• ONE END CONNECTS TO THE CLUTCH PEDAL PUSH ROD, & OTHER END CONNECTS TO THE ADJUSTING CLUTCH FORK PUSH ROD

• DRAMATICALLY IMPROVES CLUTCH MOVEMENT AFTER REPLACING THE WORN OUT FACTORY CLUTCH CROSS SHAFT "Z" BAR
• SOUTHWEST SPEED CLUTCH FRAME BRACKET
• INCLUDES THE 3/4" DIAMETER PIVOT STUD

• FACTORY REPRODUCTION

• LENGTH: 3 1/2"

• WIDTH: 1 1/2"

• ONE END WELDS TO THE FRAME & THE OTHER END CONNECTS TO THE CLUTCH CROSS SHAFT "Z" BAR
• SOUTHWEST SPEED CLUTCH FORK ADJUSTING PUSH ROD
• INCLUDES CLUTCH FORK ADJUSTING PUSH ROD, THREADED SWIVEL BLOCK, CLEVIS PIN, TWO FLAT WASHERS, & TWO COTTER PINS

• FACTORY REPRODUCTION

• LENGTH: 11 1/4"

• CONNECTS THE ADJUSTING CLUTCH FORK PUSH ROD TO CLUTCH CROSS SHAFT "Z" BAR

• FABRICATED FROM STEEL
• SOUTHWEST SPEED CLUTCH FORK ADJUSTING PUSH ROD ANTI-RATTLE SPRING
• 3 1/8" LONG COMPRESSED FROM ITS RELAXED POSITION

• DESIGNED TO THE EXACT SPRING RATE AS THE ORIGINAL

• FACTORY REPRODUCTION

• HELPS TO ELIMINATE CLUTCH PEDAL LINKAGE RATTLES & NOISES

• HEAVY DUTY SPRING FOR THE LONGER LIFE
• SOUTHWEST SPEED CROSS SHAFT FELT WASHER

  • INCLUDES A PAIR

  • FACTORY REPRODUCTION

  • INSTALLS ON BOTH SIDES OF THE CLUTCH CROSS SHAFT WHERE THE BELL HOUSING BRACKET & FRAME BRACKET ATTACH TO THE CROSSMEM

  • DESIGNED TO KEEP THE LUBRICATING GREASE CLEAN FOR THE BALL ENDS ON THE CROSS SHAFT PIVOT STUDS

  • OUTSIDE DIAMETER: 1/4"

  • INSIDE DIAMETER: 9/16"

  • THICKNESS: 1/4"
• SOUTHWEST SPEED CROSS SHAFT BUSHING & BOLT KIT
• STEEL BOLT WITH BLACK OXIDE FINISH

• FACTORY REPRODUCTION

• CORROSION-RESISTANT LOCK NUT WITH NYLON INSERT

• THE BOLT & BUSHING IS USED FOR ATTACHING THE CLUTCH PEDAL PUSH ROD TO THE CLUTCH CROSS SHAFT "Z"BAR

• INCLUDES TWO DELRIN BUSHINGS DESIGNED TO PROVIDE SMOOTHER MOVEMENT & GREATER DURABILITY
• SOUTHWEST SPEED CLUTCH PEDAL PUSH ROD
• RUNS THROUGH THE FIREWALL & CONNECTS THE CLUTCH PEDAL TO CROSS SHAFT

• FACTORY REPRODUCTION

• LENGTH: 16"

• FABRICATED FROM STEEL

APPLICATIONS:

• 1956 CHEVY BEL AIR

• 1956 CHEVY 150

• 1956 CHEVY 210

• 1956 CHEVY NOMAD

• 1956 CHEVY SEDAN DELIVERY

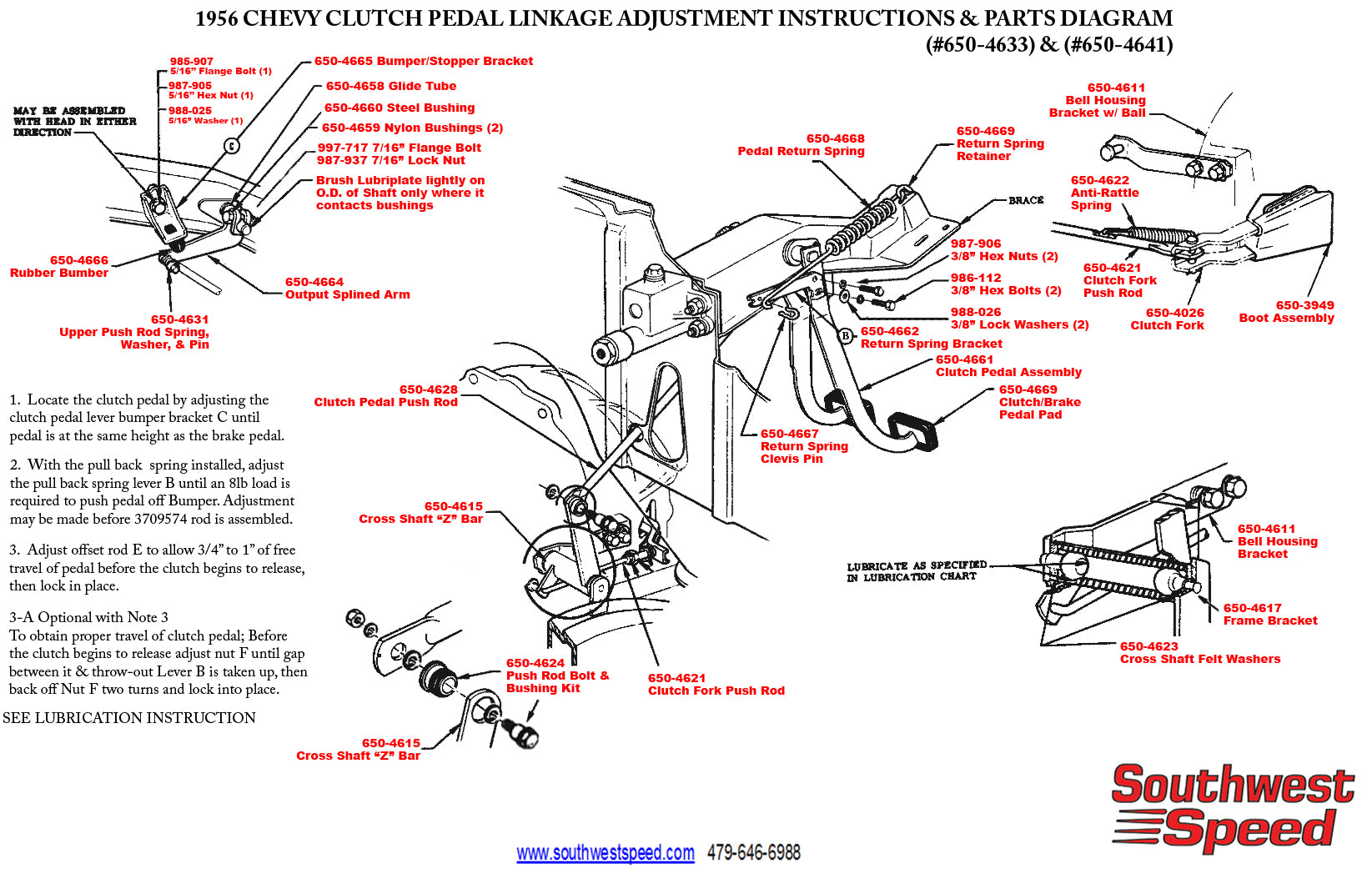

YOU CAN VIEW AND DOWNLOAD THE COMPLETE 1956 CHEVY CLUTCH LINKAGE ADJUSTMENT INSTRUCTIONS WITH DETAILED PARTS DIAGRAM HERE.
