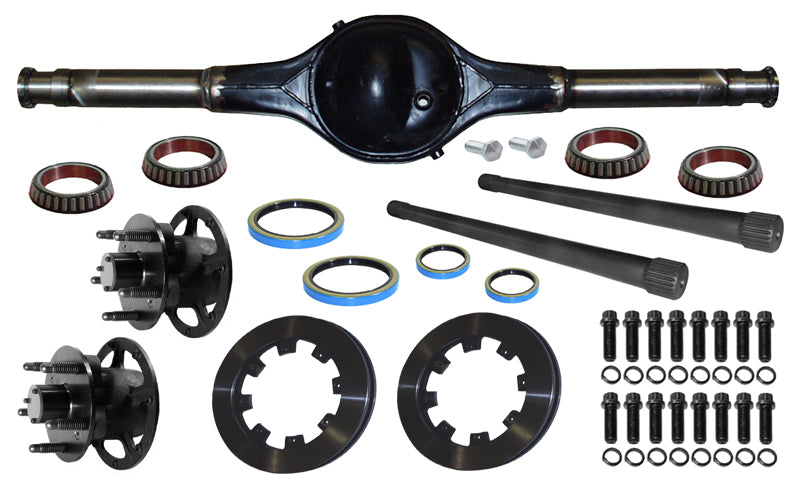

5X5 REAREND ASSEMBLY,CAST STEEL HUBS

5X5 REAREND ASSEMBLY,CAST STEEL HUBS

603-599

$999.99
$999.99
This item requires an additional shipping fee of $30 over standard shipping.
View full details
  • ALL NEW COMPONENTS & MATERIALS
  • TUBES ARE GROUND TO A TRUE 3" O.D. FOR EASY BIRD CAGE INSTALLATION; THIS IS THE REAL DEAL, NO MORE STRUGGLING FOR HOURS TO GET A BIRDCAGE ON THE TUBE; THIS IS THE ANSWER
  • FEATURES VENT, FILL, & DRAIN PLUG BUNGS
  • 5 X 5" BOLT PATTERN
  • CAST STEEL HUBS (#601-188)
  • COMPLETE 9" FORD REAR END ASSEMBLY INCLUDES:
    *HOUSING
    *SOLID AXLES, 28 OR 31 SPLINE (GUNDRILLED AXLE OPTION AVAILABLE)
    *SPINDLE NUTS & LOCK WASHERS
    *11.75" O.D. ROTORS, EITHER .810" OR 1.250" WIDE, WITH 8 BOLT X 7" BOLT CIRCLE
    *ROTOR BOLT KITS
    *5 X 5" CAST STEEL HUBS WITH COARSE THREAD STUDS
    *8 BOLT X 7" ROTOR PLATES
    *DRIVE PLATES
    *WHEEL BEARINGS
    *WHEEL SEALS
    *ALL NECESSARY O-RINGS & BOLTS FOR THE HUB KITS
    *SPINDLE SNOUT SEALS
    *AXLE SPACER BOLTS
  • GUN-DRILLED AXLES ARE AVAILABLE AT AN ADDITIONAL COST
  • WHEN ORDERING, PLEASE SPECIFY IF YOU WANT 28 OR 31 SPLINE AXLES, AS WELL AS IF YOU WANT 1/8" OR 3/16" WALL THICKNESS ON THE REAR END TUBES
  • ALSO, PLEASE SPECIFY THE DESIRED LENGTH FOR THE REAR END
  • LENGTH OF THE REAR END IS MEASURED FROM THE LEFT DRIVE PLATE FACE TO THE RIGHT DRIVE PLATE FACE, IN OTHER WORDS, FROM WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
  • ALSO PLEASE SPECIFY IF YOU WANT THE HOUSING CENTERED (WHERE THE DIMENSIONS ON BOTH SIDES OF THE PINOIN ARE THE SAME) OR OFFSET
  • IF YOU WANT AN ODD LENGTH OR AN ODD OFFSET, THERE IS A CHANCE THE TUBES MIGHT NOT BE GROUND, BUT THIS IS A RARE OCCASION
    • Complete 9" Fords
