5X5 REAREND ASSEMBLY,CAST STEEL,ECONOMY

5X5 REAREND ASSEMBLY,CAST STEEL,ECONOMY

603-597

$999.99
$999.99
This item requires an additional shipping fee of $30 over standard shipping.
View full details
  • ECONOMY RACING REAR END WITH RECONDITIONED CENTER SECTION
  • ALL NECESSARY PLUGS & NEW 3RD MEMBER STUD SET INSTALLED
  • NEW 3/16" THICK AXLE TUBES
  • CAST STEEL HUBS (#601-188)
  • 5 X 5" BOLT PATTERN (ALSO AVAILABLE WITH 5 X 4 3/4" HUBS)

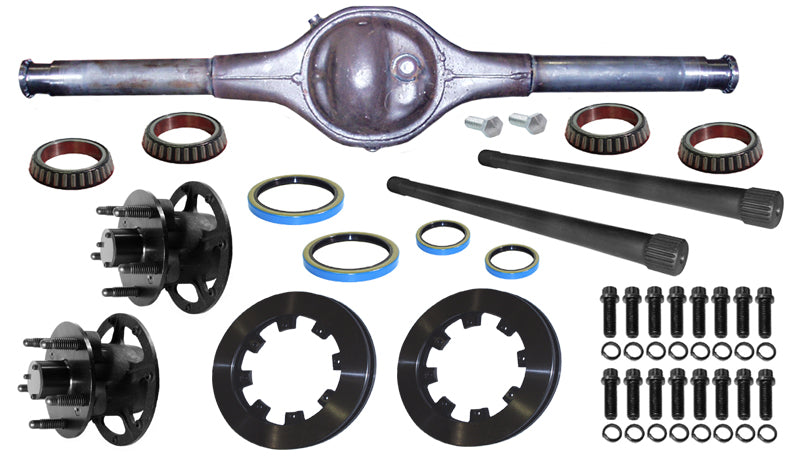

  • COMPLETE 9" FORD REAR END ASSEMBLY INCLUDES:
    *HOUSING
    *SOLID AXLES, 28 OR 31 SPLINE (GUNDRILLED AXLE OPTION AVAILABLE)
    *SPINDLE NUTS & LOCK WASHERS
    *11.75" O.D. ROTORS, EITHER .810" OR 1.250" WIDE, WITH 8 BOLT X 7" BOLT CIRCLE
    *ROTOR BOLT KITS
    *5 X 5" CAST STEEL HUBS WITH COARSE THREAD STUDS
    *8 BOLT X 7" ROTOR PLATES
    *DRIVE PLATES
    *WHEEL BEARINGS
    *WHEEL SEALS
    *ALL NECESSARY O-RINGS & BOLTS FOR THE HUB KITS
    *SPINDLE SNOUT SEALS
    *AXLE SPACER BOLTS
  • GUN-DRILLED AXLES ARE AVAILABLE AT AN ADDITIONAL COST
  • WHEN ORDERING, PLEASE SPECIFY IF YOU WANT 28 OR 31 SPLINE AXLES
  • LENGTHS AVAILABLE:
    *60" CENTERED
    *60" +2" LEFT -2" RIGHT
  • LENGTH OF THE REAR END IS MEASURED FROM THE LEFT DRIVE PLATE FACE TO THE RIGHT DRIVE PLATE FACE, IN OTHER WORDS, FROM WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
