HEADER,BBC,2",65-70 IMPALA,BEL AIR,CAMARO,NOVA,LONG TUBE,3 1/2",BLACK

HEADER,BBC,2",65-70 IMPALA,BEL AIR,CAMARO,NOVA,LONG TUBE,3 1/2",BLACK

440-2397

$299.99
$299.99
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details

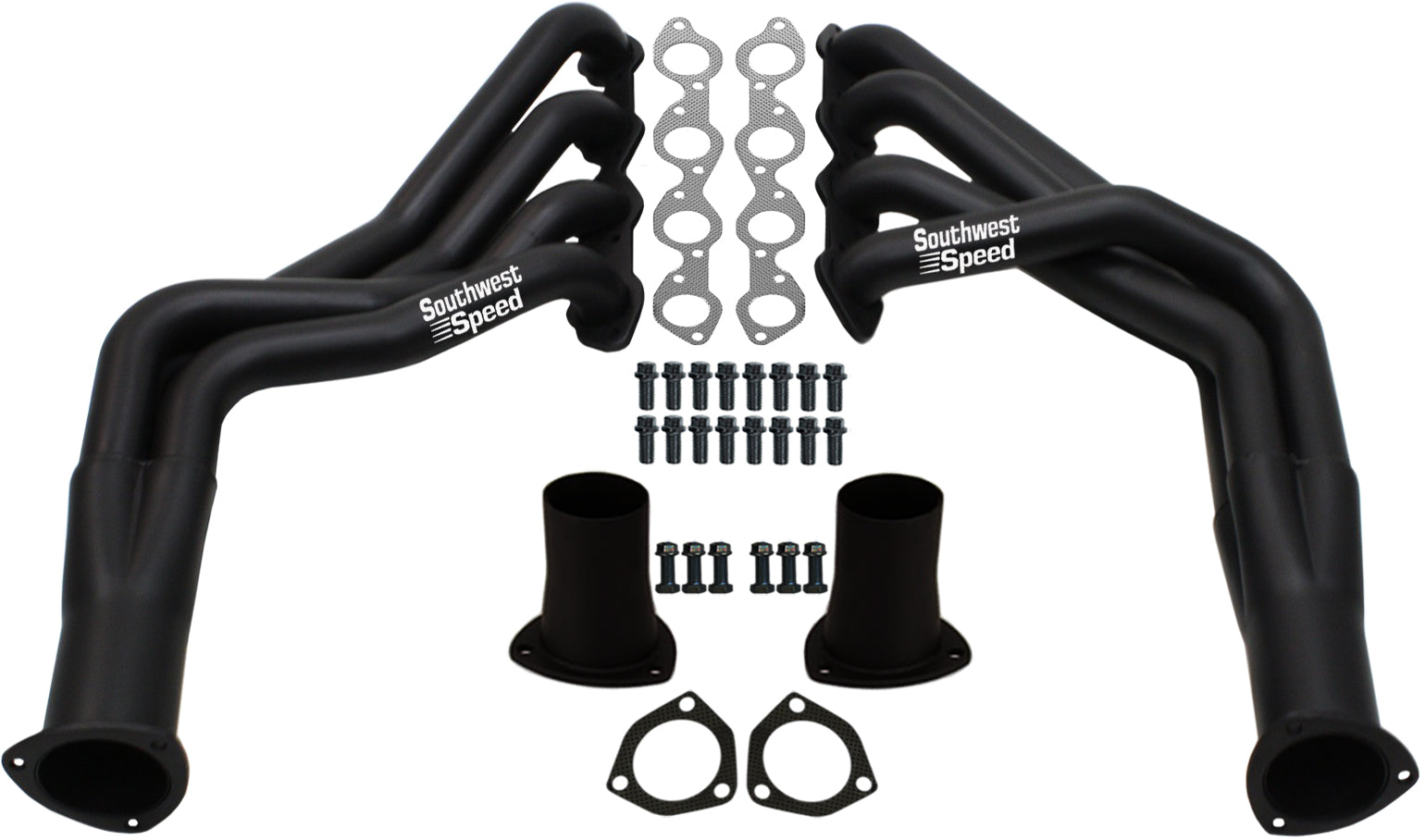

  • BRAND NEW PAIR OF SOUTHWEST SPEED PAINTED FLAT BLACK LONG TUBE HEADERS THAT FITS 1965-1974 CHEVY PASSENGER CARS WITH BIG BLOCK CHEVY 262-400CI ENGINES.

  • THESE SOUTHWEST SPEED LONG TUBE HEADERS ARE A DIRECT FIT FOR 1965-1974 CHEVY PASSENGER CARS WITH BIG BLOCK CHEVY V-8 ENGINES, AND WILL WORK WITH BOTH AUTOMATIC & MANUAL TRANSMISSIONS. THESE HEADERS ARE A CHASSIS HEADER AND ARE MEANT TO GO INSIDE OF THE FRAME RAILS ON 1965-1974 CHEVROLET CHASSIS. THE COLLECTORS EXIT TOWARD THE REAR OF THE ENGINE COMPARTMENT AND ARE WELL ABOVE THE UNDER CARRIAGE OF THE VEHICLE, ELIMINATING THE CHANCE OF THE COLLECTORS CONTACTING THE GROUND. THE UNIQUE DESIGN OF THE COLLECTOR LOCATION MAKES THESE HEADERS A GREAT CHOICE FOR MANY GM PASSENGER CARS THAT INCLUDE: 1965-1970 BEL AIR, BISCAYNE, & IMPALA, 1967-1969 CAMARO, AND 1968-1974 NOVA WITH BIG BLOCK CHEVY ENGINES. ORIGINAL BIG BLOCK FRAME STANDS AND MOTOR MOUNTS MUST BE USED TO INSURE PROPER ENGINE LOCATION AND HEADER FIT. GROUND PARALLEL WITH .380" FLANGES ON THE CYLINDER HEAD SURFACE WITH 2" PRIMARY TUBES, & FEATURE 3-1/2" COLLECTORS AND ARE SUPPLIED WITH 2-1/2" REDUCERS THAT BOLT TO THE COLLECTORS, TO CONNECT THE REST OF THE EXHAUST SYSTEM TO THE VEHICLE. SOLD COMPLETE WITH HEADER BOLTS AND GASKETS, AND REDUCER BOLTS AND GASKETS. THESE HEADERS WILL FIT ANGLE PLUG OR STRAIGHT PLUG HEADS, AND NO SPARK PLUG OR SPARK PLUG WIRE RESTRICTIONS.

    • NOTE: THESE HEADERS WILL NOT FIT 348CI & 409CI W-SERIES BIG BLOCK CHEVY ENGINES

    FEATURES:

    • WILL WORK WITH BOTH AUTOMATIC & MANUAL TRANSMISSIONS IN 1965-1974 CHEVROLET CHASSIS
    • 2" PRIMARIES TO THE 3 1/2" COLLECTORS
    • INCLUDES A PAIR OF 2-1/2" REDUCERS TO CONNECT EXHAUST UNDER THE VEHICLE
    • GREAT FOR SOME HOT RODS, RAT RODS & STREET RODS
    • MORE PERFORMANCE
    • BETTER FUEL MILEAGE
    • GREAT CHOICE TO REPLACE CAST IRON EXHAUST MANIFOLDS
    • ENHANCES THE LOOKS OF ANY ROD
    • INCLUDES GASKETS AND MOUNTING HARDWARE
    • PAINTED FLAT BLACK TO RESIST EARLY CORROSION

    FACTORY APPLICATIONS:

    • CHEVY PASSENGER CARS WITH BIG BLOCK ENGINES:
      • 1965-1970 BEL AIR
      • 1965-1970 BISCAYNE
      • 1965-1970 IMPALA
      • 1967-1969 CAMARO
      • 1968-1974 NOVA

    HEADER SPECS:

    • MATERIAL TYPE: STEEL
    • HEADER TUBE TYPE: LONG TUBE
    • FLANGE STYLE: ROUND PORT
    • FLANGE THICKNESS: .380"
    • FINISH: PAINTED FLAT BLACK
    • HARDWARE INCLUDED: YES
    • GASKETS INCLUDED: YES
    • TUBE OUTSIDE DIAMETER: 2"
    • COLLECTOR DIAMETER: 3 1/2"
    • REDUCER: 2 1/2"
    • REDUCER LENGTH: 4 7/8"

    NOTES:

    • 1. DOES NOT FIT 348CI & 409CI W-SERIES BIG BLOCK CHEVY ENGINES
    • 2. FITS ALL BIG BLOCK CHEVROLET V-8 ENGINES WITH STANDARD EXHAUST PATTERN
    • 3. FITS 396, 402, 409, 427, & 454 CU. IN. BIG BLOCK CHEVY ENGINES
    • 4. ORIGINAL BIG BLOCK FRAME STANDS AND MOTOR MOUNTS MUST BE USED TO INSURE PROPER ENGINE LOCATION AND HEADER FIT

    PAINT WARNING:

    THESE HEADERS ARE PAINTED WITH A HIGH HEAT DULL BLACK PAINT. IT WILL GENERALLY DULL EVEN MORE WHEN THE ENGINE IS STARTED. THE HEADER PAINT WILL SMOKE AND LET OFF AN ODOR THE FIRST FEW TIMES THE ENGINE IS UP TO TEMPERATURE AND THE BLACK FINISH WILL BECOME DULLER TURNING CLOSER TO GRAY IN COLOR. IF EXHAUST TEMPERATURES ARE EXTREME AT START THE PAINT WILL BLISTER AND PEEL. THERE IS NO WARRANTY ON HEADER PAINT.

    HEADER RETURN POLICY:

    IN THE EVENT YOU ORDER A HEADER THAT WILL NOT FIT YOUR VEHICLE AND APPLICATION, YOU MAY RETURN THEM FOR A REFUND, PROVIDING YOU DO NOT DAMAGE THE HEADER. WHEN YOU RECEIVE THE HEADER THE FINISH WILL BE PROTECTED AND MUST REMAIN UNSCRATCHED FOR A REFUND. IF YOU BEND OR DIMPLE ANY OF THE TUBES OR SCRATCH THE FINISH, WE WILL NOT BE ABLE TO SELL THE HEADER AND WILL NOT BE ABLE TO PROCESS A REFUND. USE CARE WHEN TRIAL FITTING HEADERS. REPACK THEM WELL TO PREVENT DAMAGE RETURNING THEM TO US. WE WILL NOT PROCESS REFUNDS FOR SCRATCHED, DIMPLED, DENTED, OR BENT HEADERS.

    YOU CAN VIEW AND DOWNLOAD THE COMPLETE INSTRUCTIONS FOR THESE HEADERS HERE.
