HEADER,SBC,1 1/2",UNDER CHASSIS,28-34 FORD,3",CERAMIC HOT COATED

HEADER,SBC,1 1/2",UNDER CHASSIS,28-34 FORD,3",CERAMIC HOT COATED

440-2101

$349.99
$349.99
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details
  • BRAND NEW PAIR OF SOUTHWEST SPEED CERAMIC HOT COATED FORD CHASSIS HEADERS FOR SMALL BLOCK CHEVY 265-400CI ENGINES.

  • THIS PAIR OF SOUTHWEST SPEED FORD CHASSIS HEADERS ARE GREAT FOR HOT RODS, STREET RODS, RAT RODS & NOSTALGIA RODS, AND ARE HOTTER THAN EVER, AND NOTHING GIVES YOUR STREET ROD THAT AUTHENTIC COMPETITION LOOK & FULL-LENGTH HEADER PERFORMANCE LIKE A SET OF CHASSIS HEADERS. THESE HEADERS WILL FIT INSIDE THE FRAME RAILS ON 1928-1934 FORD CHASSIS, & CAN BE BE USED WITH NEARLY ANY OIL FILTER SYSTEM, TRANSMISSION, & STARTER COMBINATION. THESE ARE A GREAT CHOICE FOR MOST ANY ROADSTER WITH A SMALL BLOCK CHEVY ENGINE. SUPPLIED WITH 1 1/2" PRIMARY TUBES WITH 3" COLLECTORS, AND COMES COMPLETE WITH HEADER BOLTS AND GASKETS AND REDUCER BOLTS AND GASKETS. FEATURES .380" GROUND PARALLEL FLANGES ON THE CYLINDER HEAD SURFACE, AND INCLUDES A PAIR OF 3" TO 2 1/4" REDUCERS TO COMPLETE THE INSTALLATION. THESE HEADERS WILL FIT ANGLE PLUG OR STRAIGHT PLUG HEAD APPLICATIONS WITH NO SPARK PLUG OR SPARK PLUG WIRE RESTRICTIONS.

  • CERAMIC HOT COATING (CHC) IS A HEAT RESISTANT, CERAMIC COATING APPLIED TO THE OUTSIDE OF THE HEADER. THIS COATING WILL REFLECT HEAT, WHICH HELPS RETAIN MORE HEAT WITHIN THE HEADER TUBE, WHILE SIMULTANEOUSLY SPEEDING UP THE EXHAUST FLOW. NOT ONLY WILL THIS COATING HELP YOU MAKE MORE HORSEPOWER, IT ALSO KEEPS YOUR HEADERS RUST-FREE, LOOKING GREAT, AND LASTING LONGER (WHEN PROPERLY MAINTAINED). IF YOU ARE LOOKING FOR A QUALITY FINISH FOR YOUR HEADERS, THIS IS IT. GOOD TO 1300 DEGREES.

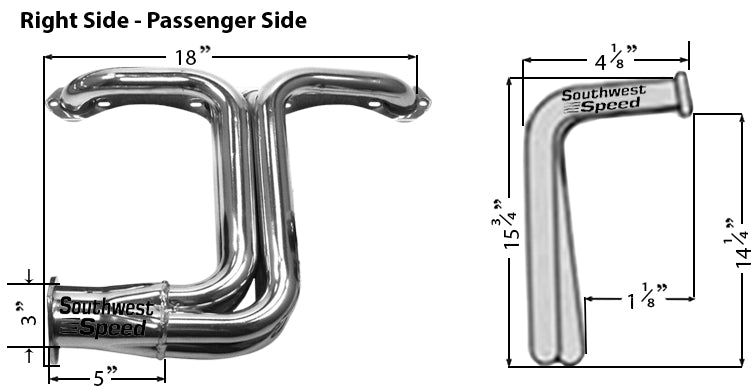

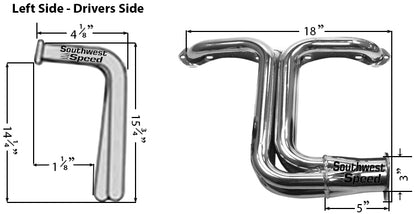

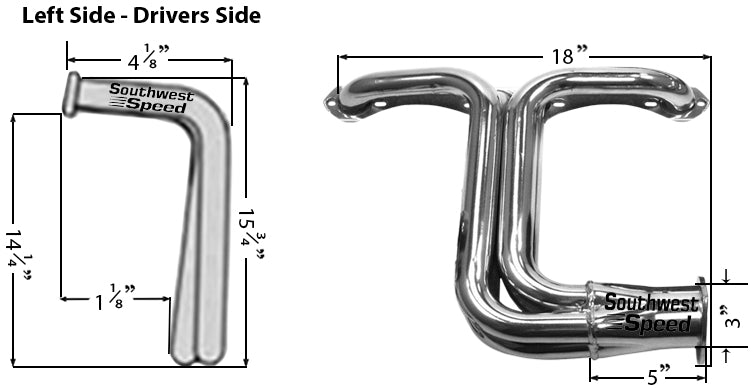

  • NOTE: REFER TO MEASUREMENT CHART BELOW TO INSURE HEADERS WILL FIT YOUR VEHICLE AND APPLICATION.

    • FEATURES:

    • WILL WORK WITH BOTH AUTOMATIC & MANUAL TRANSMISSIONS IN 1928-1934 FORD CHASSIS
    • 1-1/2" PRIMARIES TO THE 3" COLLECTORS
    • INCLUDES A PAIR OF 3" TO 2-1/4" REDUCERS TO CONNECT EXHAUST UNDER THE VEHICLE
    • GREAT FOR HOT RODS, RAT RODS, STREET RODS, & ANY NOSTALGIA ROD
    • MORE PERFORMANCE
    • BETTER FUEL MILEAGE
    • GREAT CHOICE TO REPLACE CAST IRON EXHAUST MANIFOLDS
    • ENHANCES THE LOOKS OF ANY ROD

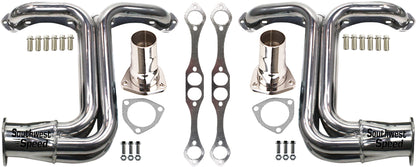

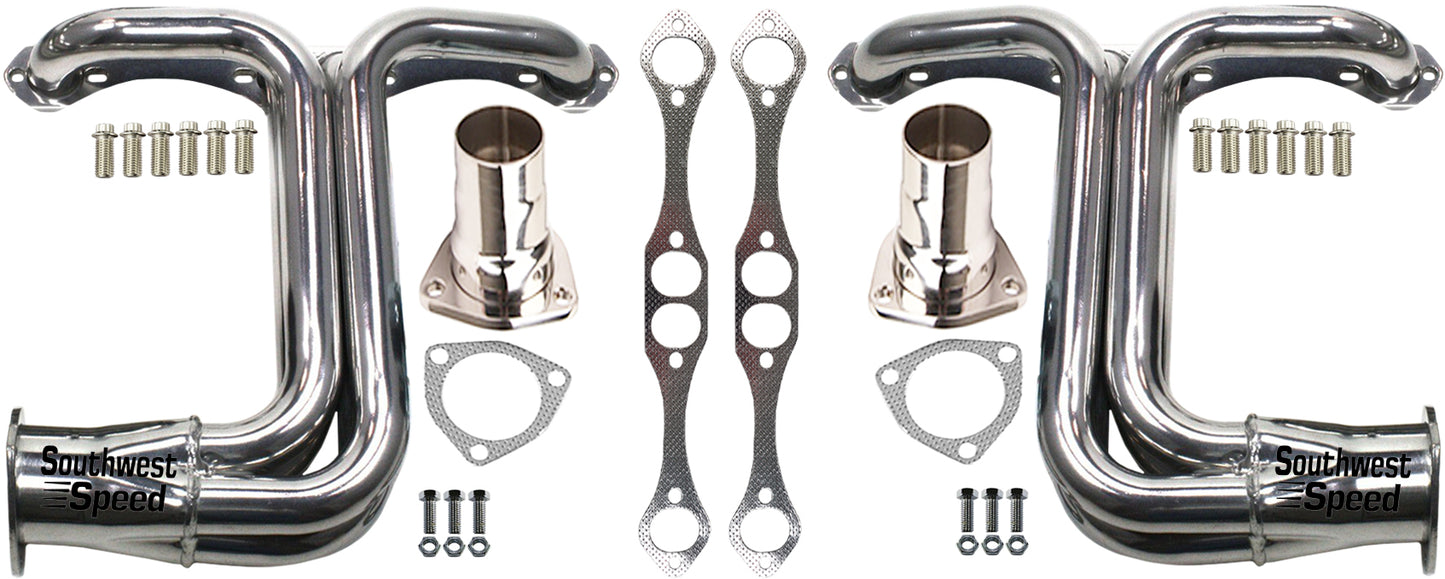

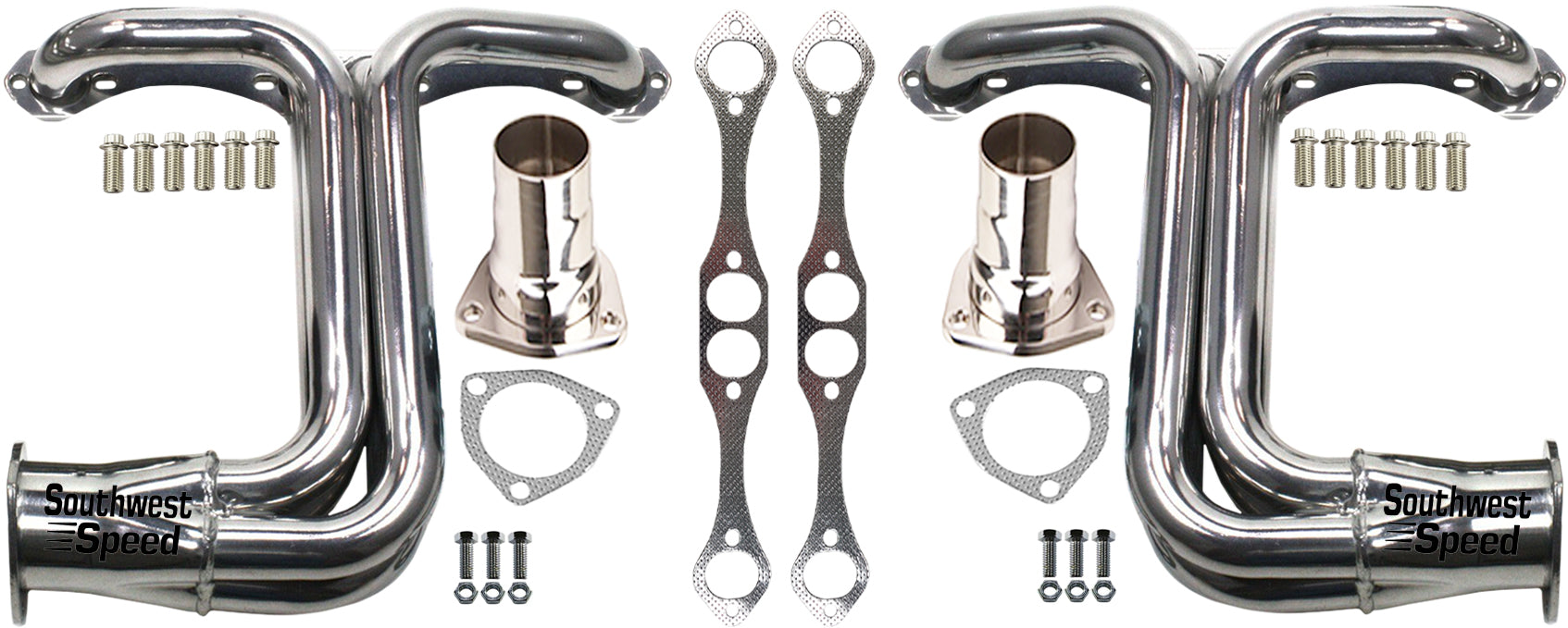

    • INCLUDES GASKETS AND MOUNTING HARDWARE
    • CERAMIC HOT COATED TO RESIST EARLY CORROSION

    APPLICATIONS:

    • 1928-1934 STREET ROD WITH FORD CHASSIS
    • FITS STANDARD AND VORTEC-HEAD S/B CHEVY V8S (NOT D-PORT, LT-1 OR ZZ-4)
    • FIT MOST ANGLE PLUG HEADS
    • FITS SMALL BLOCK CHEVY 262, 267, 265, 283, 302, 307, 327, 350, 400 CID ENGINES WITH STANDARD EXHAUST PATTERN

  • NOTE: THIS PRODUCT IS LEGAL FOR USE ON 1974 AND OLDER NON CATALYST EQUIPPED VEHICLES AND IS CONSIDERED A "REPLACEMENT PART" PER CALIFORNIA AIR RESOURCES BOARD REGULATIONS, AS LONG AS ALL EMISSIONS SENSITIVE COMPONENTS ARE RETAINED, INCLUDING A.I.R., EGR, HEAT RISERS ETC. FAILURE TO RETAIN ANY OF THESE COMPONENTS, OR USE ON ANY 1975 OR NEWER CATALYTIC CONVERTER EQUIPPED CAR WOULD RENDER THIS PRODUCT ILLEGAL FOR STREET OR OFF HIGHWAY USE IN CALIFORNIA, OR IN STATES THAT HAVE ADOPTED CALIFORNIA EMISSIONS REGULATIONS AND MAY ONLY BE USED FOR CLOSED COURSE COMPETITION.

    • HEADER SPECS:

    • MATERIAL TYPE: STEEL
    • HEADER TUBE TYPE: CHASSIS HEADERS
    • FLANGE THICKNESS: .380"
    • FINISH: CERAMIC HOT COATED
    • HARDWARE INCLUDED: YES
    • GASKETS INCLUDED: YES
    • TUBE OUTSIDE DIAMETER: 1 1/2"
    • COLLECTOR DIAMETER: 3"
    • REDUCER: 3" TO 2 1/4"
    • REDUCER LENGTH: 5"

    NOTES:

    • 1. CAN BE USED WITH ANY OIL FILTER SYSTEM OR TRANSMISSION AND STARTER COMBINATION.
    • 2. FIT MOST ANGLE PLUG HEADS.
    • 3. FITS SIDE OR FRONT MOTOR MOUNTS.
    • 4. WILL FIT WITH STOCK, MUSTANG, VEGA OR SAGINAW STEERING.
    • 5. FITS AUTOMATIC AND MANUAL TRANSMISSIONS.

    CERAMIC HOT COATING WARNING:

    WARNING: CHC COATINGS WILL BURN AND BE DAMAGED AT EXHAUST TEMPERATURES OVER 1300 DEGREES. A LEAN FUEL MIXTURE CAN GENERATE EXHAUST TEMPERATURES EXCEEDING 1700-1900 DEGREES. IF THE COATING IS DAMAGED DUE TO A LEAN CONDITION, THE COATING WILL NOT BE WARRANTED, BUT CAN BE RECOATED FOR A FEE. NO WARRANTY OR RETURNS ON CERAMIC HOT COATED EXHAUST ITEMS ONCE THEY HAVE BEEN INSTALLED.

    HEADER RETURN POLICY:

    PLEASE REFER TO THE HEADER MEASUREMENT CHART BELOW TO MAKE SURE THE HEADER WILL FIT YOUR VEHICLE AND APPLICATION BEFORE ORDERING. IN THE EVENT YOU ORDER A HEADER THAT WILL NOT FIT YOUR VEHICLE AND APPLICATION, YOU MAY RETURN THEM FOR A REFUND, PROVIDING YOU DO NOT DAMAGE THE HEADER. WHEN YOU RECEIVE THE HEADER THE FINISH WILL BE PROTECTED AND MUST REMAIN UNSCRATCHED FOR A REFUND. IF YOU BEND OR DIMPLE ANY OF THE TUBES OR SCRATCH THE FINISH, WE WILL NOT BE ABLE TO SELL THE HEADER AND WILL NOT BE ABLE TO PROCESS A REFUND. USE CARE WHEN TRIAL FITTING HEADERS. REPACK THEM WELL TO PREVENT DAMAGE RETURNING THEM TO US. WE WILL NOT PROCESS REFUNDS FOR SCRATCHED, DIMPLED, DENTED, OR BENT HEADERS.
