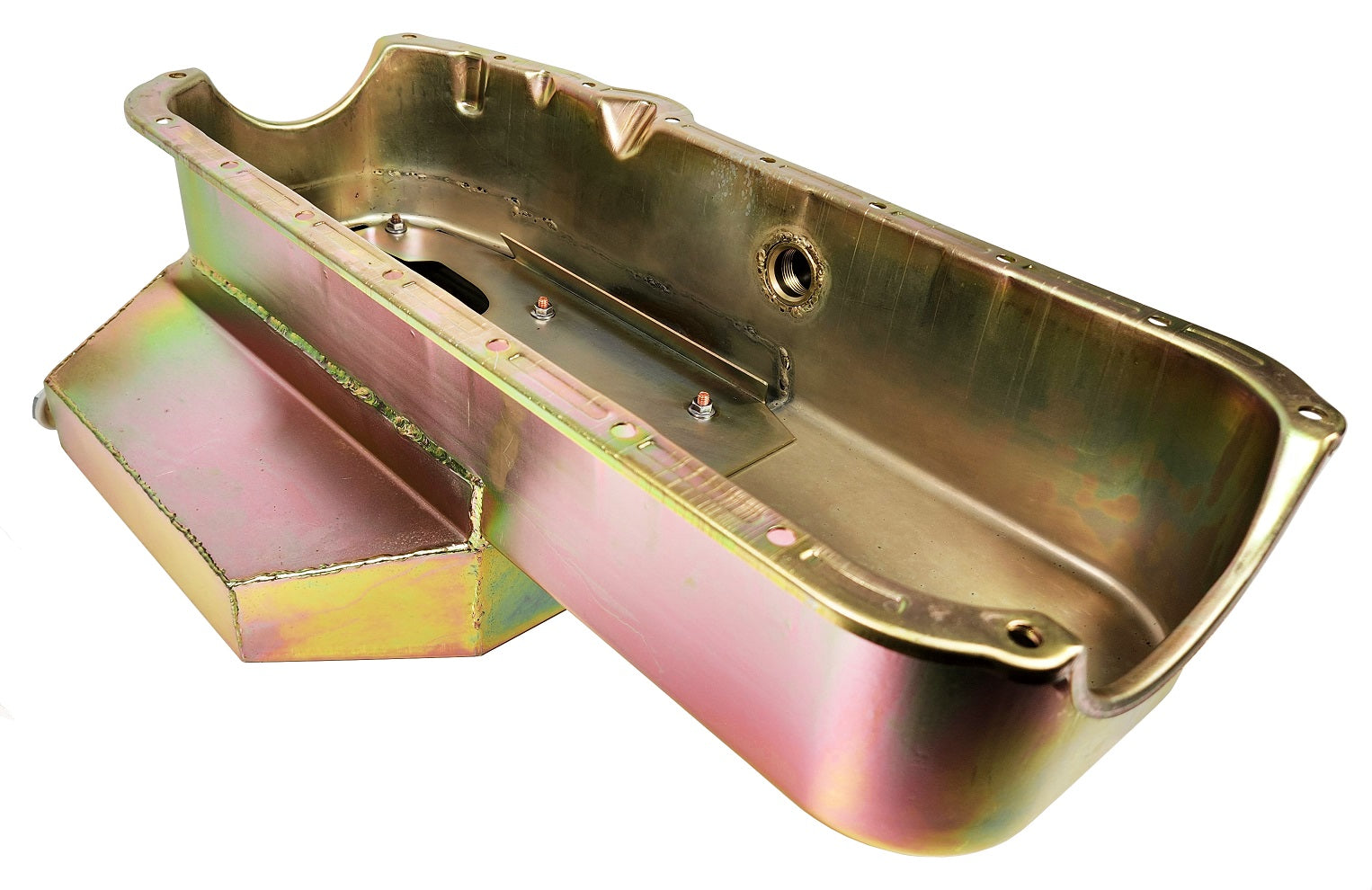

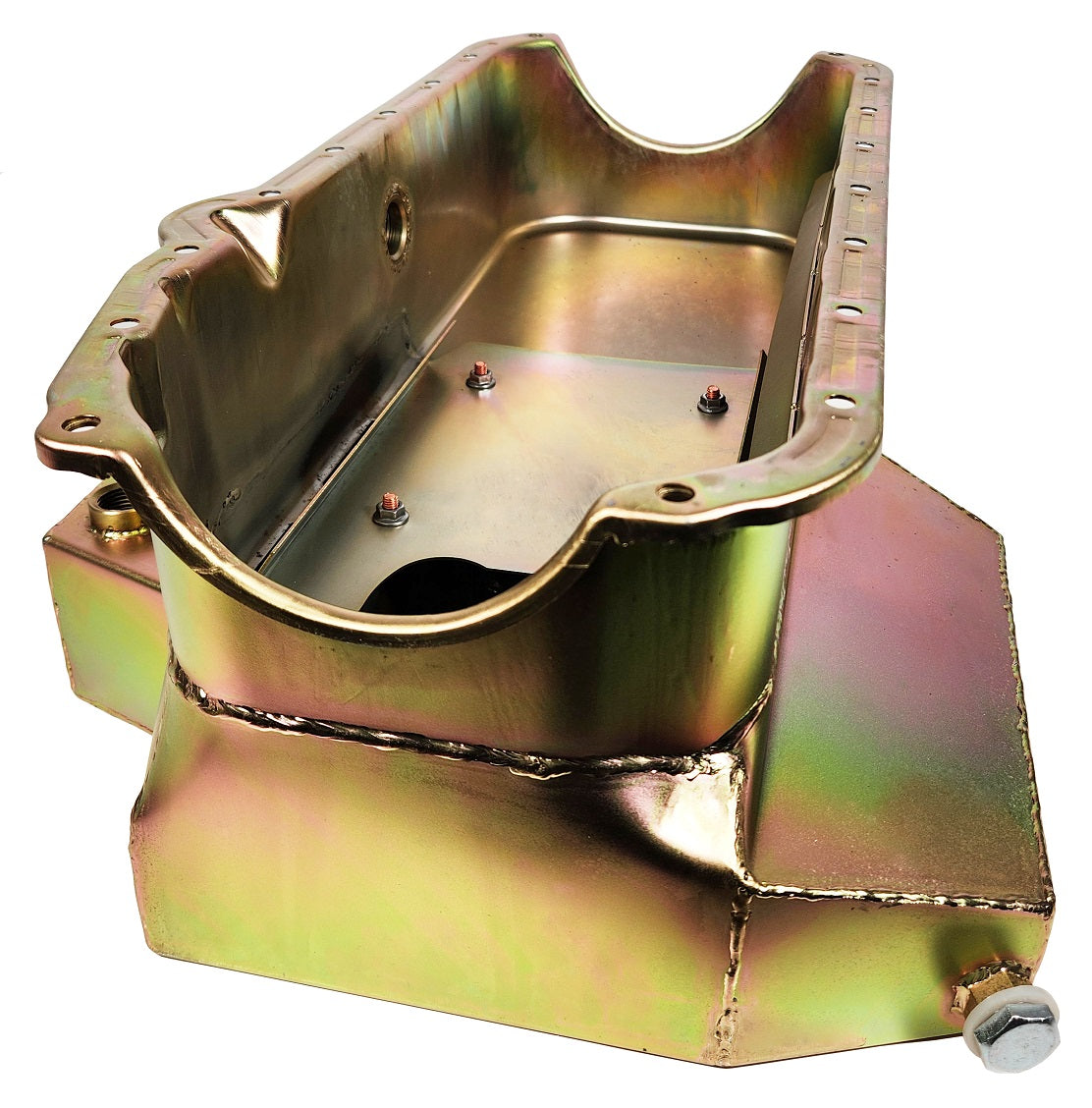

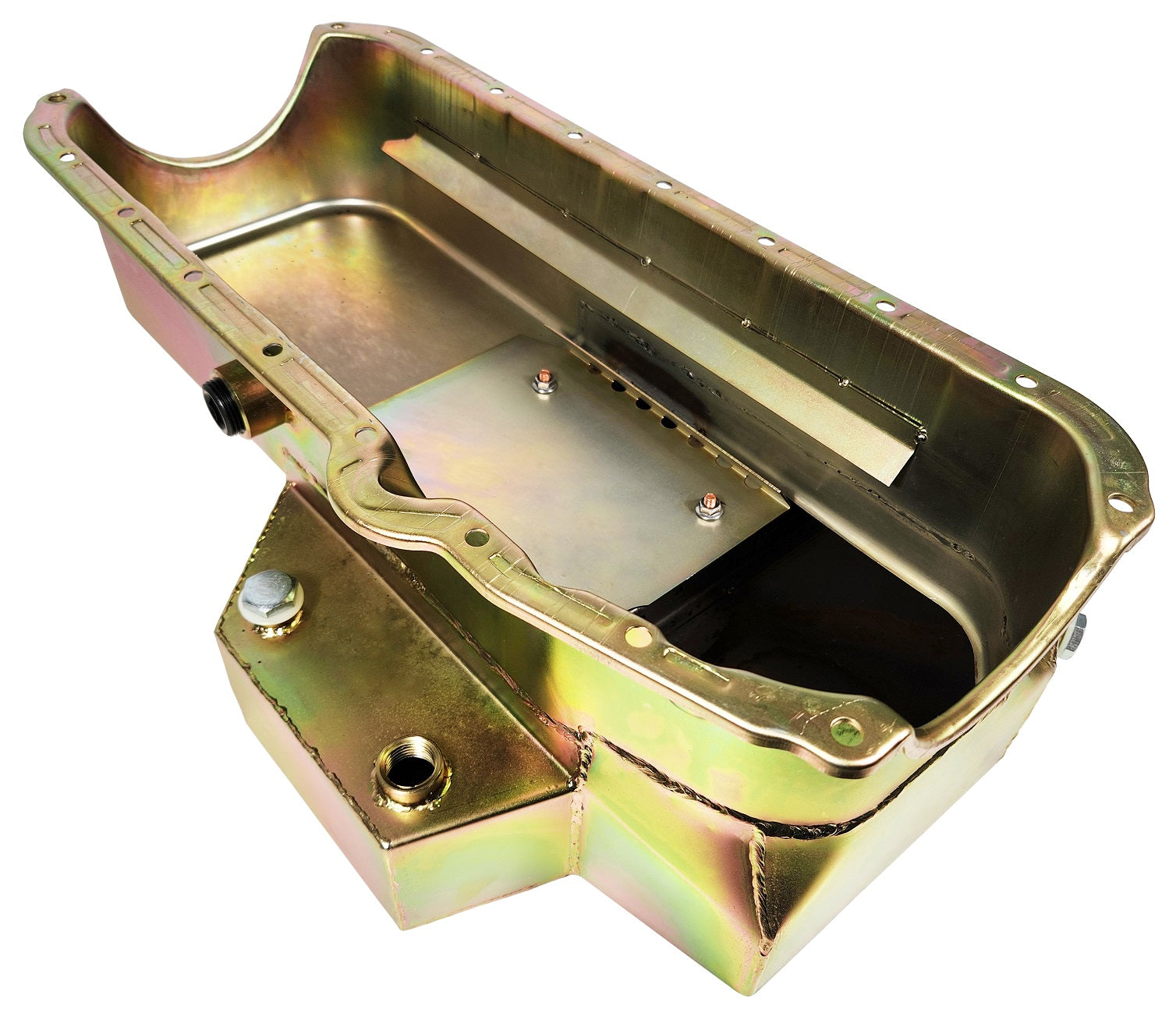

OIL PAN,SBC,8 QT,7" DEEP,LEFT-HAND DIPSTICK

OIL PAN,SBC,8 QT,7" DEEP,LEFT-HAND DIPSTICK

413-067

$124.99
$124.99
This item requires an additional shipping fee of $10.00 over standard shipping.
View full details
  • DESIGNED FOR NUMEROUS DIFFERENT APPLICATIONS
  • 8 QUART CAPACITY
  • SUMP MEASURES 7" DEEP X 14" WIDE X 12" LONG
  • SUMP IS KICKED OUT ON BOTH SIDES, 2 3/4" ON THE LEFT & 3 1/2" ON THE RIGHT
  • MEASURES 9 1/2" FROM THE FRONT OF THE SUMP TO THE FRONT OF THE PAN
  • FEATURES A SLOT FOR A DIPSTICK ON THE LEFT (DRIVERS) SIDE, AS WELL AS PLUGS ON THE LEFT SIDE ON TOP OF THE KICKOUT & ON THE RIGHT SIDE ON THE BACK OF THE KICKOUT
  • 5 TRAP DOORS

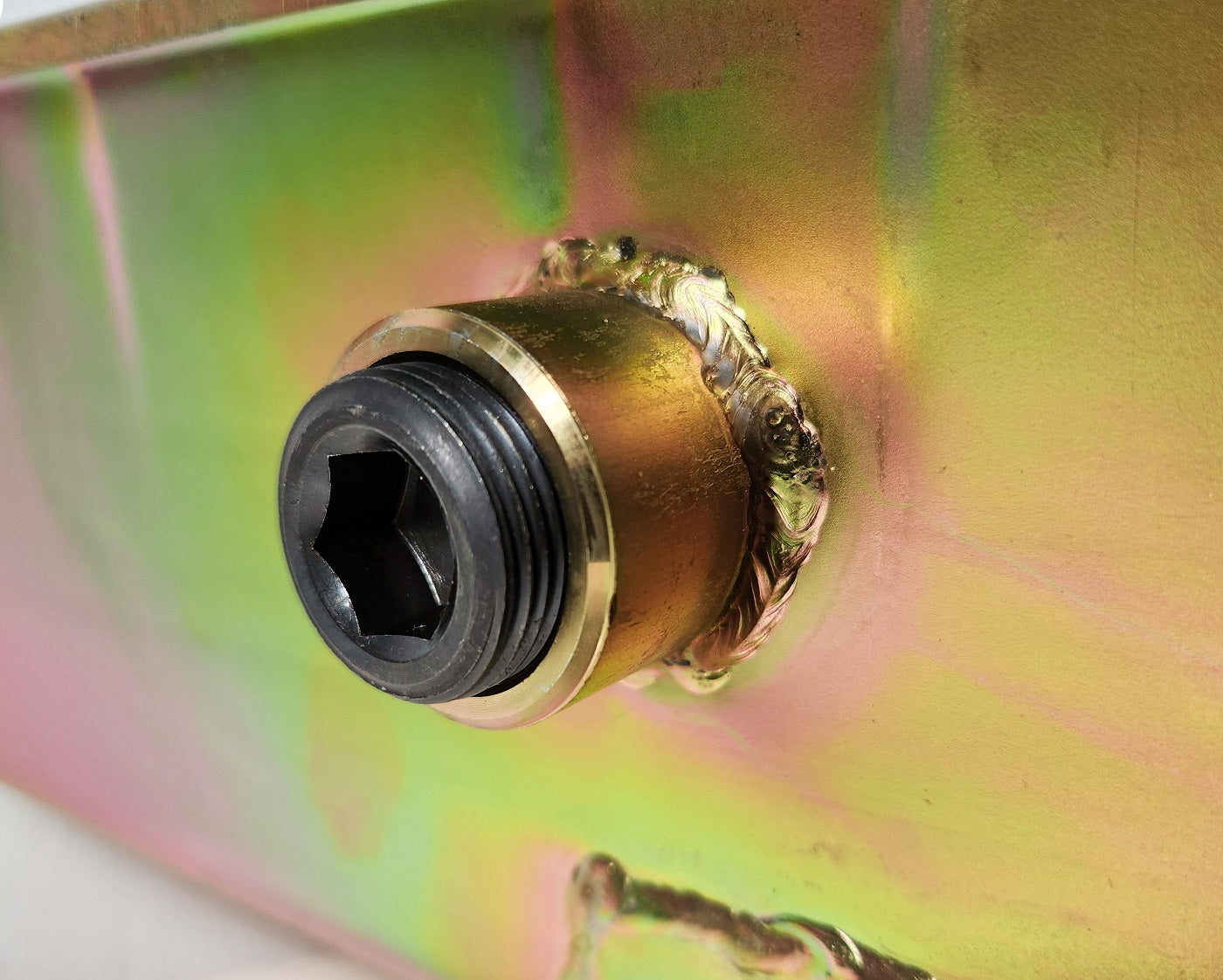

  • 1" INSPECTION PLUG IS WELDED TO LEFT SIDE TO MEET RULE REQUIREMENTS
  • FITS SBC & BBC PUMPS
  • USE #413-036 PICKUP WITH SBC PUMPS
  • USE #413-038 PICKUP WITH BBC PUMPS
    • 8 Quart SBC Oil Pan, 7" Deep
