BELT DRIVE KIT,HTD,22T,40T,800MM

BELT DRIVE KIT,HTD,22T,40T,800MM

412-529

$169.99
$169.99
View full details
  • DRIVES PUMP OFF THE CRANK
  • KIT INCLUDES:
    *HTD CRANK PULLEY-22 TOOTH, 1 1/4" WIDE, 1" I.D. #412-432
    *HTD PUMP PULLEY-40 TOOTH, 1 1/4" WIDE, 5.8" I.D. #412-454
    *HTD BELT-8MM TOOTH PITCH X 30MM WIDE X 800MM LONG #412-416
    *CRANK BOLT-7/16" X 5 1/2" #412-322
    *BELT GUIDE KIT #412-311
    *END CAP #412-321
    *ALUMINUM MANDREL-1" X 3 1/2" #412-300
    *2 MANDREL SPACERS-3/4" #412-306 & 1 1/4" #412-310
  • KIT CAN BE ALTERED WITH THE PARTS LISTED IN "DRIVE KIT PARTS"

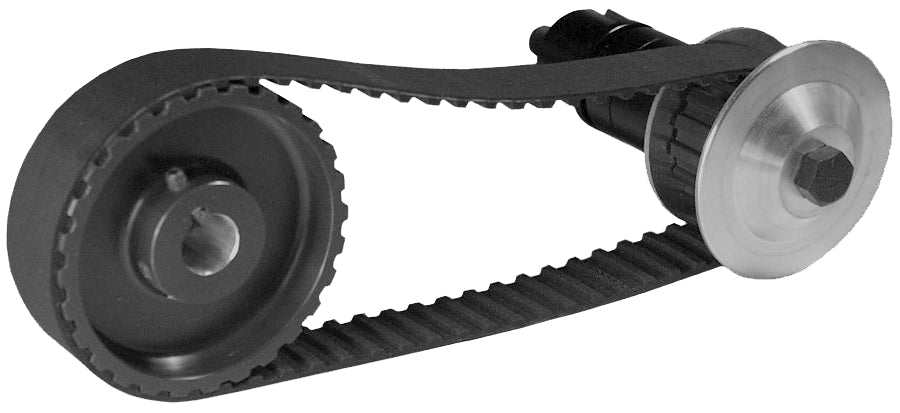

  • GILMER KIT #412-504 SHOWN
    • Oil Pump Drive Kits
