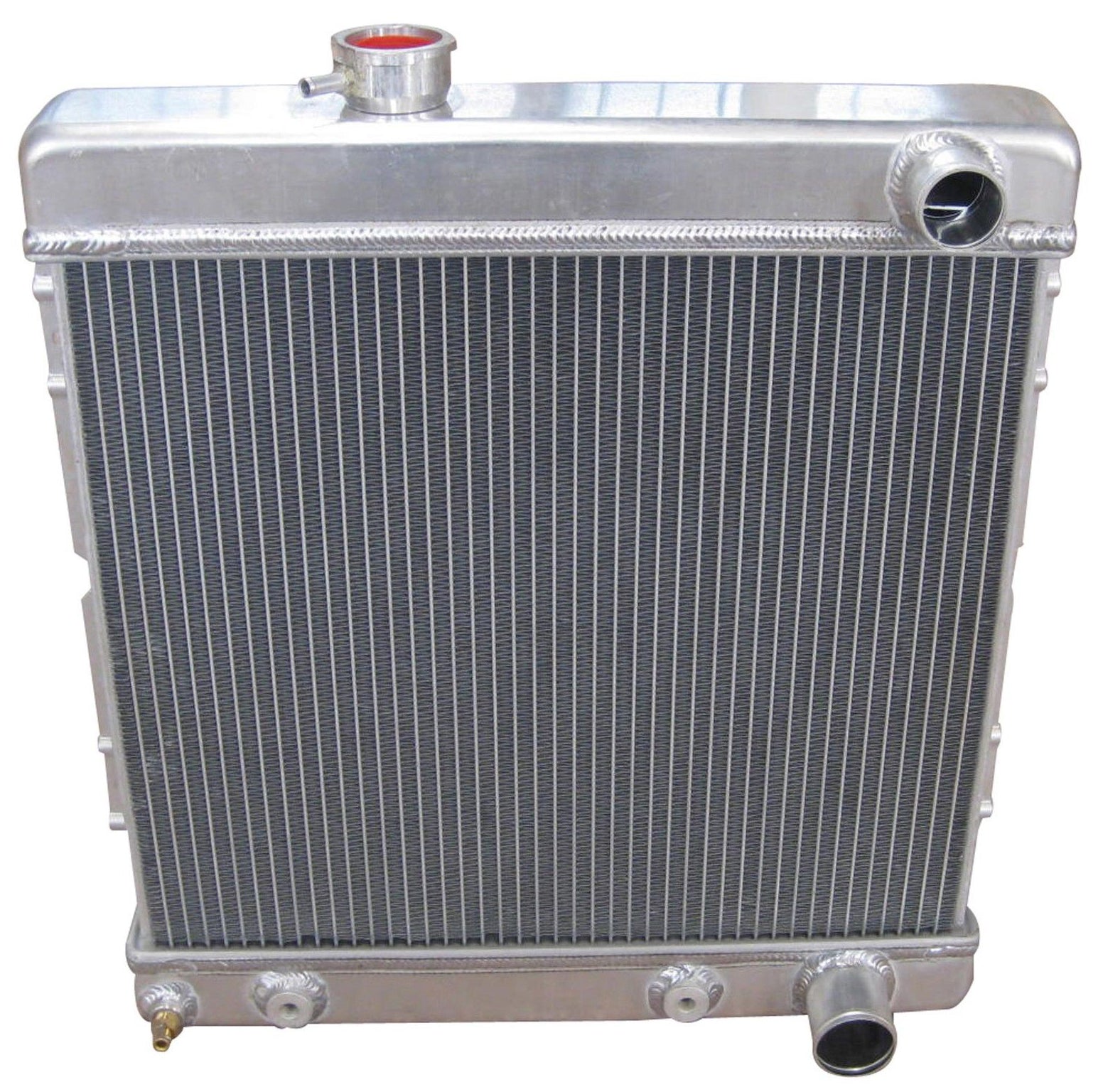

RADIATOR,ALUMINUM,64-66 MUSTANG,AUTOMATIC

BRAND NEW SOUTHWEST SPEED DUAL CORE 2-ROW HIGH EFFICIENCY DOWNFLOW ALUMINUM RADIATOR WITH BUILT-IN TRANSMISSION COOLER FOR 1964-1966 FORD MUSTANGS THAT CAN BE USED ON MANUAL AND AUTOMATIC APPLICATIONS.

WE DO ALSO HAVE A RADIATOR WITHOUT THE TRANSMISSION COOLER AVAILABLE HERE.

THIS RADIATOR IS ALL ALUMINUM WITH 100% TIG WELDED CONSTRUCTION WITH NO EPOXY. FEATURES 2 ROWS OF 1" DIAMETER TUBES AND 17 FINS PER INCH TO PROVIDE MAXIMUM COOLING, WITH A BUILT-IN TRANSMISSION COOLER.

FEATURES:

• 2 ROWS OF 1" TUBES
• BUILT-IN 7-PLATE AUTOMATIC TRANSMISSION COOLER
• HIGH QUALITY FULL T-6061 ALUMINUM CONSTRUCTION
• TRANSMISSION COOLER PORTS: 1/8"-27 NPT

SPECS:

• MATERIAL TYPE: ALUMINUM
• OVERALL HEIGHT: 21 1/2"
• OVERALL WIDTH: 19 1/4"
• TRANSMISSION COOLER: YES
• TUBE STYLE: DOWNFLOW
• OVERALL THICKNESS: 3"
• ROW QUANTITY: DUAL
• INLET LOCATION: UPPER RIGHT
• INLET SIZE: 1 1/2"
• OUTLET LOCATION: LOWER RIGHT
• OUTLET SIZE: 1 3/4"
• TUBE SIZE: 1.00"
