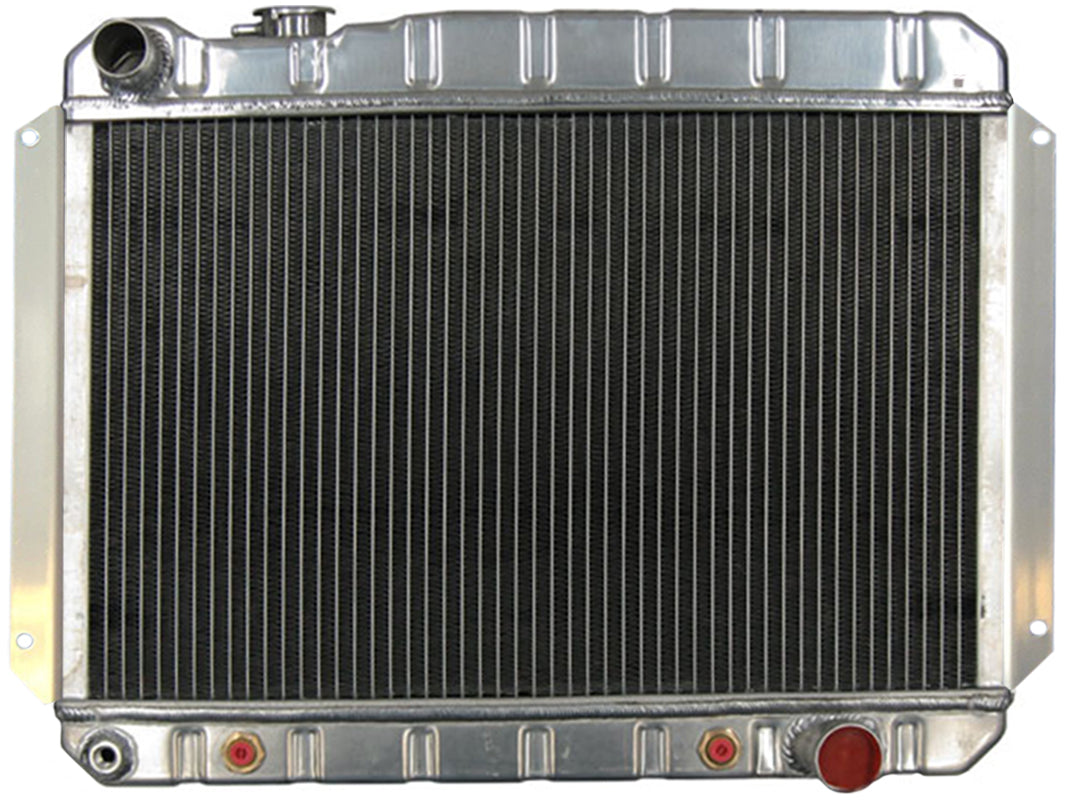

RADIATOR,ALUMINUM,DOWN FLOW,64-67 GM A-BODY

RADIATOR,ALUMINUM,DOWN FLOW,64-67 GM A-BODY

410-1902

$399.99
$399.99
This item requires an additional shipping fee of $10.00 over standard shipping.
View full details
  • BRAND NEW SOUTHWEST SPEED DUAL CORE 2-ROW OEM STYLE DOWNFLOW ALUMINUM RADIATOR WITH BUILT-IN TRANSMISSION COOLER FOR 1964-1967 GM A BODIES THAT CAN BE USED ON BOTH MANUAL AND AUTOMATIC APPLICATIONS.

  • THIS ALUMINUM RADIATOR IS DESIGNED TO FIT AND LOOK AUTHENTIC AS A DROP-IN REPLACEMENT. THIS ALUMINUM RADIATOR IS BUILT TO FACTORY SPECIFICATIONS, SO IT LOOKS LIKE A FACTORY 1964-1967 GM A BODY RADIATOR, BUT IS MUCH LIGHTER & MORE EFFICIENT THEN THE FACTORY COPPER/BRASS TYPE RADIATOR. THIS IS A MUST-HAVE FOR ANY STREET-DRIVEN CAR THAT NEEDS SOME EXTRA COOLING POWER. SUPPLIED WITH 1/2"-20 INVERTED FLARE PORTS FOR THE AUTOMATIC TRANSMISSION COOLER, FOR MANUAL TRANSMISSION, YOU CAN SIMPLY PLUG THE COOLER PORTS WITH TWO 1/2"-20 INVERTED FLARE PLUGS. YOUR CLASSIC CAR DESERVES THE BEST!

    • APPLICATIONS:

    • 1964-1967 CHEVY CHEVELLE
    • 1964-1967 CHEVY EL CAMINO
    • 1964-1967 CHEVY MALIBU
    • 1964-1967 PONTIAC GTO
    • 1964-1967 PONTIAC LEMANS
    • 1964-1967 PONTIAC SAFARI
    • 1964-1967 PONTIAC TEMPEST

    FEATURES:

    • 1/2" NPT BUNG FOR TEMP SWITCH
    • 2 ROWS OF 1" TUBES
    • BUILT-IN 7-PLATE AUTOMATIC TRANSMISSION COOLER
    • TRANS COOLER PORTS: 1/2"-20 INVERTED FLARE

    SPECS:

    • MATERIAL TYPE: ALUMINUM
    • OVERALL HEIGHT: 21"
    • OVERALL WIDTH: 27 1/2"
    • TRANSMISSION COOLER: YES
    • TUBE STYLE: DOWNFLOW
    • CORE THICKNESS: 2 1/2"
    • OVERALL THICKNESS: 3"
    • ROW QUANTITY: DUAL
    • INLET LOCATION: UPPER LEFT
    • INLET SIZE: 1 1/2"
    • OUTLET LOCATION: LOWER RIGHT
    • OUTLET SIZE: 1 3/4"
    • TUBE SIZE: 1.00"
    • RADIATOR STYLE: SINGLE PASS
