RADIATOR WITH GRILLE & SHELL,DOWN FLOW,32 FORD HI-BOY ORIGINAL STYLE WITH HOLES

Brand New Southwest Speed Original Style Radiator, Grille, & Grille Shell Kit for a 1932 Ford Hi-Boy, Rat Rod, Hot Rod, or Street Rod (Part #410-1888, 410-1802, & 410-1803).

Please Note: This kit includes an aluminum radiator with the radiator fill cap located on the back of the radiator tank, under the hood. The radiator fill hole in the grille shell for the radiator is for cosmetic purposes only.  The actual radiator cap won't line up with the grille shell radiator fill hole.

Kit Includes:

• Southwest Speed 1932 Ford Hi-Boy Aluminum Radiator (#410-1888)
  • 1/2" NPT bung for temp switch, if not needed, it can be plugged with a 1/2" NPT plug
  • 2 rows of 1" tubes
  • Built-in 7-plate automatic transmission cooler
  • Drain Petcock
  • Correct brackets for 32 Ford Support Rods welded to back of upper radiator tank
  • Trans Cooler ports: 1/8" NPT
• Southwest Speed 1932 Ford Hi-Boy Steel Grille Shell With Crank Hole & Radiator Fill Hole (#410-1802)
  • Manufactured with heavy duty steel
  • Original style with Crank hole & Radiator fill hole
  • Model A Ford black finish
  • Rat Rod Quality, Factory Reproduction Piece, which could need sanding, putty & paint to be show car quality.

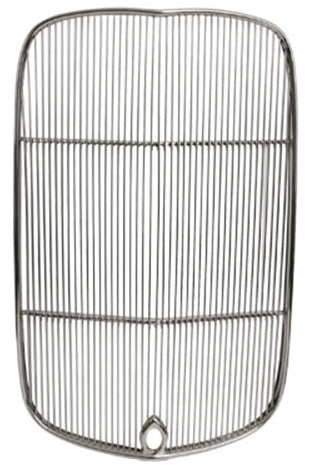

• Southwest Speed 1932 Ford Hi-Boy Polished Stainless Steel Grille Insert With Crank Hole (#410-1803)
  • Top Quality stainless steel bars and outer ring
  • Original style with crank hole
  • Polished stainless steel finish

Radiator Specs:

• Material Type: Aluminum
• Overall Height: 27 1/8"
• Overall Width: 18"
• Passenger side lower hose 1 3/4"
• Centered upper hose: 1 1/2"
• Core Thickness: 3"
• Overall Thickness: 4.00"
• Transmission Cooler: Yes
• Tube Style: Downflow
• Row Quantity: Dual
• Tube Size: 1.00"
• Radiator Style: Single Pass

Radiator Grille Shell Specs:

• Material Type: Steel
• Overall Height: 33"
• Overall Width: 22"
• Crank Hole: Yes
• Radiator Fill Hole: Yes
• Finish: Model A Ford Black

Radiator Grille Specs

• Material Type: Stainless Steel
• Overall Height: 27 1/2"
• Overall Width: 17 1/2"
• Crank Hole: Yes
• Finish: Polished

We also have the Rodder style Hi-Boy Radiator & Grille kit available without the crank hole & radiator fill hole, click here to view our other listings.

This is the Perfect kit for a Rat Rod, Hot Rod, or Street Rod. The Aluminum radiator Features a Super duty, all aluminum construction with the latest high efficiency core with Chevy-style outlets that is ideal for high compression & supercharged engines. The Grille insert features exceptionally solid polished stainless steel bars and outer ring. The Grille Shell is made from heavy duty steel with a Ford Model A Black finish that will add the perfect finishing touch to your 32' project. (It is always a good idea to measure before you order).
