TRANSMISSION CROSSMEMBER,63-72 GM TRUCK

TRANSMISSION CROSSMEMBER,63-72 GM TRUCK

400-7096

$99.99
$99.99
This item requires an additional shipping fee of $5.00 over standard shipping.
View full details

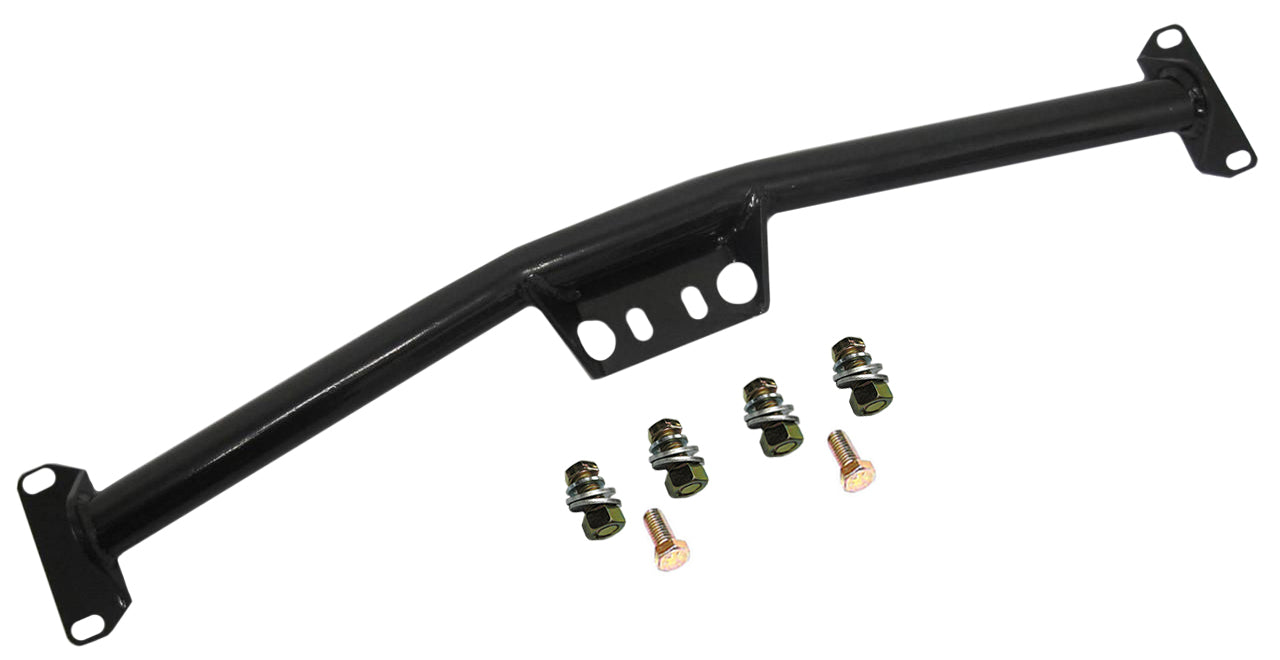

  • BRAND NEW SOUTHWEST SPEED BOLT-IN TUBULAR TRANSMISSION CROSSMEMBER FOR 1963-1972 CHEVY & GMC TRUCKS.

  • THIS SOUTHWEST SPEED BOLT-IN TUBULAR TRANSMISSION CROSSMEMBER IS FOR INSTALLING A POWERGLIDE, TH350, TH400, OR 700R4 AUTOMATIC TRANSMISSION IN A 1963-1972 CHEVY & GMC TRUCK. THIS CROSSMEMBER WILL ALSO WORK WITH GM MANUAL TRANSMISSIONS INCLUDING LATER MODEL MUNCIE & SAGINAW 3 & 4 SPEED MANUAL TRANSMISSIONS. THIS IS NT A UNIVERSAL FIT UNIT. THIS IS A DIRECT BOLT-IN FOR THE 1967-1972 CHEVY & GMC TRUCKS, BUT WILL REQUIRE DRILLING THE MOUNTING HOLES ON THE 1963-1966 CHEVY & GMC TRUCKS. THE TUBULAR CROSSMEMBER ALSO INCREASES EXHAUST PIPE CLEARANCE IN CRITICAL AREAS. THIS CROSSMEMBER IS SHIPPED COMPLETE AND INCLUDES THE NECESSARY HARDWARE TO MOUNT THE CROSSMEMBER. CROSSMEMBER REQUIRES THE USE OF THE POLYURETHANE OR STOCK RUBBER TAIL HOUSING MOUNT (NOT INCLUDED).

    • FEATURES:

    • MADE FROM HEAVY GAUGE STEEL TUBING
    • INCLUDES MOUNTING HARDWARE PICTURED
    • BLACK POWDER COATED TO RESIST CORROSION

    CROSSMEMBER SPECS:

    • OVERALL LENGTH: 33 1/8"
    • TUBE LENGTH END-TO-END: 29 3/8"
    • CROSSMEMBER TUBE OUTSIDE DIAMETER: 1 5/8"

    MOUNTING HARDWARE SPECS:

    • FOUR MOUNTING BOLTS WITH NUTS & WASHERS, CROSSMEMBER TO FRAME RAILS
    • TWO MOUNTING BOLTS WITH FLAT WASHERS AND LOCK WASHERS, CENTER CROSSMEMBER TO TAIL HOUSING MOUNT

    APPLICATIONS:

    • 1963-1972 CHEVY C10 PICKUP
    • 1963-1972 CHEVY C20 PICKUP
    • 1963-1972 CHEVY C30 PICKUP
    • 1963-1966 GMC 1000 PICKUP
    • 1963-1966 GMC 1500 PICKUP
    • 1963-1966 GMC 2500 PICKUP
    • 1963-1966 GMC 3500 PICKUP
    • 1963-1966 GMC 3000 PICKUP
    • 1963-1966 GMC 3500 PICKUP
    • 1967-1972 GMC C15/C1500 PICKUP
    • 1967-1972 GMC C25/C2500 PICKUP
    • 1967-1972 GMC C35/C3500 PICKUP
