ENGINE CROSSMEMBER,47-59 GM TRUCK,CHROME

ENGINE CROSSMEMBER,47-59 GM TRUCK,CHROME

400-7081

$149.99
$149.99
This item requires an additional shipping fee of $5.00 over standard shipping.
View full details

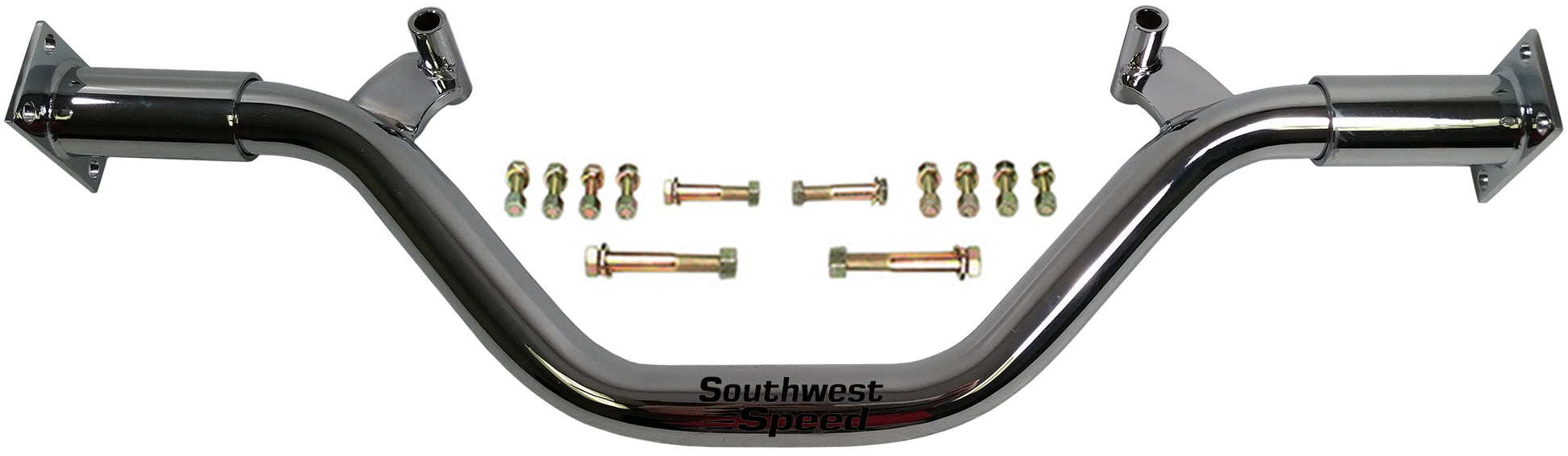

  • BRAND NEW SOUTHWEST SPEED CHROME-PLATED BOLT-IN V-8 ENGINE MOUNT FOR 1947-1959 CHEVY & GMC TRUCKS. THIS IS A TRIM-TO-FIT TUBULAR CROSSMEMBER.

  • THIS TUBULAR TRIM-TO-FIT CROSSMEMBER IS FOR INSTALLING A V-8 SBC OR BBC CHEVROLET ENGINE INTO 1947-1959 GMC & CHEVY TRUCKS. THIS CROSSMEMBER IS ADJUSTABLE TO FIT FRAME RAIL SPACINGS OF 24" TO 37". THIS CROSSMEMBER USES SIDE ENGINE MOUNTS (NOT INCLUDED) & FITS ALL SMALL BLOCK CHEVY & BIG BLOCK CHEVY ENGINES & INCLUDES THE END CAPS & NECESSARY HARDWARE TO MOUNT THE CROSSMEMBER.

    • FEATURES:

    • TRIM-TO-FIT TO FIT YOUR CUSTOM APPLICATION
    • ADJUSTABLE END CAPS THAT ADAPT TO FRAME RAIL SPACINGS FROM 24" TO 37"
    • MADE FROM HEAVY GAUGE TUBULAR STEEL TUBING
    • INCLUDES ALL MOUNTING HARDWARE PICTURED
    • CHROME-PLATED

    ENGINE CROSSMEMBER SPECS:

    • FITS FRAME RAILS 24" TO 37" INSIDE TO INSIDE
    • CENTER TUBE LENGTH END TO END: 31-7/8"
    • END CAPS: 4" LONG PER SIDE
    • CROSSMEMBER TUBE OUTSIDE DIAMETER: 1-5/8"
    • CROSSMEMBER TUBE INSIDE DIAMETER: 1-3/8"
    • END CAPS OUTSIDE DIAMETER: 1-7/8"
    • END CAPS INSIDE DIAMETER: 1-3/4"

    MOUNTING HARDWARE SPECS:

    • TWO MOUNTING BOLTS WITH NUTS & WASHERS, MOTOR MOUNT TO CROSSMEMBER
    • TWO MOUNTING BOLTS WITH NUTS & WASHERS, CENTER CROSSMEMBER TO END CAPS
    • EIGHT MOUNTING BOLTS WITH NUTS & WASHERS, END CAPS TO FRAME RAILS
