79-87 G-BODY DISC BRAKE & 2" DROP SPINDLE KIT,10.5" DRILLED ROTORS,RED CALIPERS

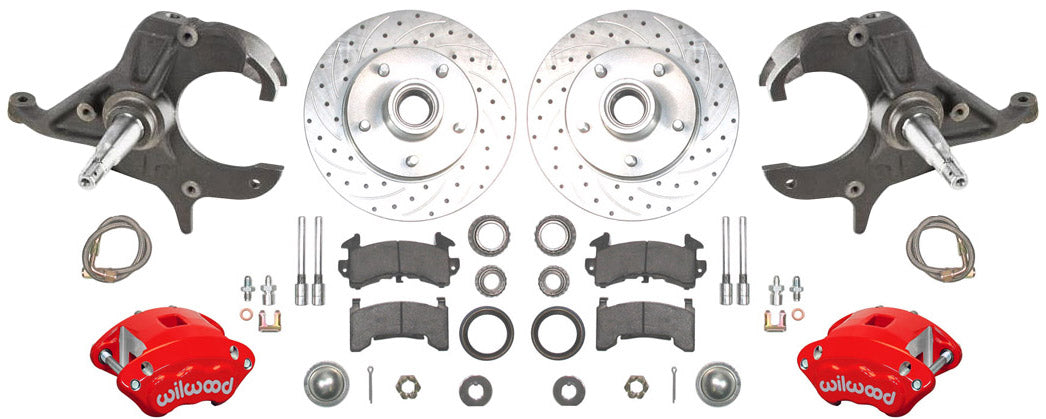

• ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST AND PICTURE BELOW FOR A DETAIL OF THE PARTS INCLUDED.

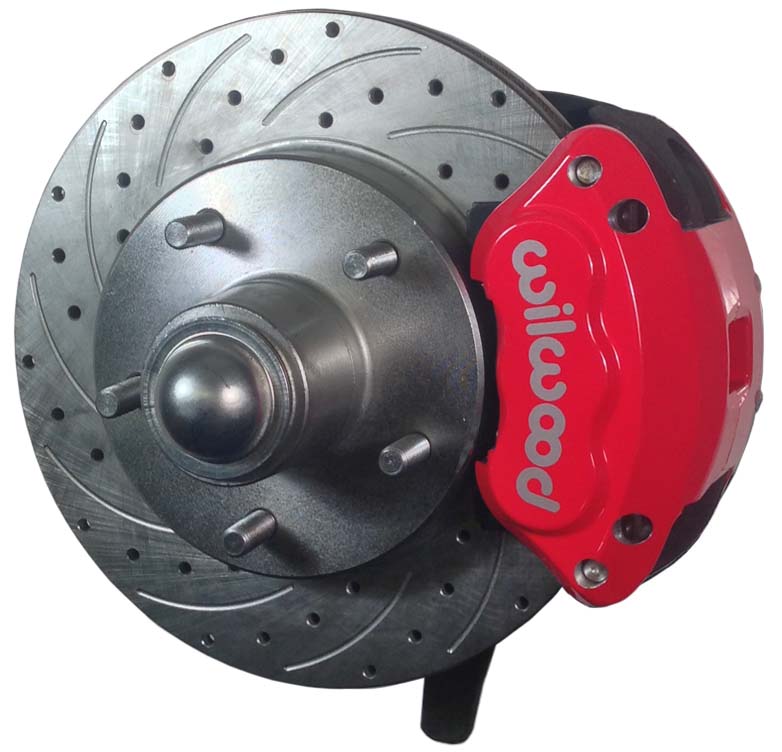

• FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED RED WILWOOD CALIPERS.

FITS:

• CHEVY:
  • 1979-1987 EL CAMINO, MALIBU, & MONTE CARLO
  • 1982-1997 S10 PICKUP AND S10 BLAZER 2WD
• BUICK:
  • 1979-1987 CENTURY, GRAND NATIONAL, AND REGAL
• GMC:
  • 1979-1987 SPRINT
  • 1982-1997 S15 JIMMY AND S15 JIMMY 2WD
• OLDSMOBILE:
  • 1979-1987 CUTLASS
• PONTIAC:
  • 1979-1987 LEMANS, GRAND AM, GRAND LEMANS, GRAND PRIX, AND SAFARI
  • 1982-1987 BONNEVILLE

• SOUTHWEST SPEED SPINDLE AND BRAKE KITS CONSIST OF PRECISION ENGINEERED COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL.

• SWS DROP SPINDLES PROVIDE A FULL 2" DROP, WHILE NOT CHANGING THE VEHICLES STEERING GEOMETRY. THEY WILL ACCEPT THE STOCK BALL JOINTS.

• THESE 1-PIECE ROTOR AND HAT KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE FOR AMERICAN MUSCLE CARS AND VINTAGE RODS. THEY ARE FULLY COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT. THEY PROVIDE SOLID BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF DAILY DRIVERS, RACE VEHICLES, AND ULTRA-STYLED SHOW MACHINES.

• WILWOODS D154 1-PISTON CALIPERS ARE A LIGHTWEIGHT, HIGH-STRENGTH, EXTREME-DUTY ALTERNATIVE TO THE OE-STYLE CAST IRON CALIPERS. FORGED BILLET ALUMINUM BODIES, STAINLESS STEEL PISTONS, AND COMPETITION STYLE HIGH-TEMPERATURE SEALS PUT AN END TO THE RUST, BORE PITTING, AND SEAL FAILURES THAT PLAGUE THE OE CALIPERS. D154 CALIPERS PROVIDE LOW-MAINTENANCE PERFORMANCE AND A HUGE WEIGHT SAVINGS WITH HIGH TEMPERATURE RELIABILITY FOR THE STREET AND TRACK. THE 2.50" PISTON IN EACH CALIPER PROVIDES 4.90 SQUARE INCHES OF PISTON AREA PER CALIPER. THE KIT CONTAINS HARDENED SLIDE PINS AND WILWOOD BP-10 HIGH FRICTION PADS

• THESE BRAKE KITS REQUIRE AT LEAST 14" DIAMETER WHEELS.

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 1.00" THICK X 10.50" O.D. 1-PIECE ROTORS/HATS
  • 5 X 4.75" BOLT PATTERN
  • 12MM X 1.5 STUDS
• 2" DROP SPINDLES
  • STRONG 4140 STEEL CONSTRUCTION
• WILWOOD D154 1-PISTON FORGED ALUMINUM CALIPERS - RED
  • 2.50" PISTON
• WILWOOD BP-10 SMART COMPOUND BRAKE PADS
• CALIPER SLIDE PIN BOLTS WITH SLEEVES
• STEEL BRAIDED BRAKE LINE KIT WITH FITTINGS TO CONNECT TO CALIPERS AND CONNECT TO STOCK HARD LINES
• WHEEL BEARINGS AND RACES
• SEALS, WASHERS, NUTS, COTTER PINS, & DUST CAPS
