59-64 CHEVY DISC BRAKE CONVERSION KIT,11" ROTORS,D52 CALIPERS

• THIS KIT IS DESIGNED TO BOLT DIRECTLY ON THE ORIGINAL SPINDLES IN THE APPLICATIONS LISTED BELOW.

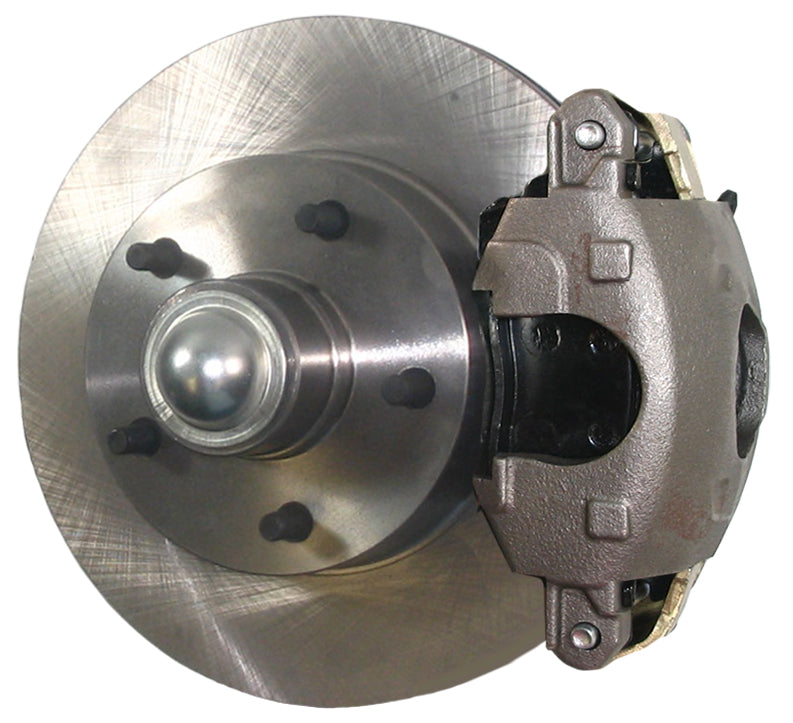

• ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST AND PICTURE BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FITS:

• CHEVY:
  • 1959-1964 IMPALA
  • 1959-1964 BEL AIR
  • 1959-1964 BISCAYNE
  • 1959-1961 BROOKWOOD
  • 1963-1964 CORVETTE
  • 1959-1960 EL CAMINO
  • 1959-1961 KINGSWOOD
  • 1959-1961 NOMAD
  • 1959-1961 PARKWOOD
  • 1959-1960 SEDAN DELIVERY

• SOUTHWEST SPEED BRAKE KITS CONSIST OF PRECISION ENGINEERED COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL.

• THESE 1-PIECE ROTOR AND HAT KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE FOR AMERICAN MUSCLE CARS AND VINTAGE RODS. THEY ARE FULLY COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT. THEY PROVIDE SOLID BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF DAILY DRIVERS, RACE VEHICLES, AND ULTRA-STYLED SHOW MACHINES.

• D52 1-PISTON CALIPERS PROVIDE HIGH-STRENGTH, EXTREME-DUTY BRAKING POWER. THEY ARE COMPLETELY BRAND NEW CAST STEEL CALIPERS, NOT REBUILT. D52 CALIPERS PROVIDE LOW-MAINTENANCE PERFORMANCE WITH HIGH TEMPERATURE RELIABILITY FOR THE STREET AND TRACK. THE KIT CONTAINS HARDENED SLIDE PINS AND SEMI-METALLIC, HIGH FRICTION PADS

• THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

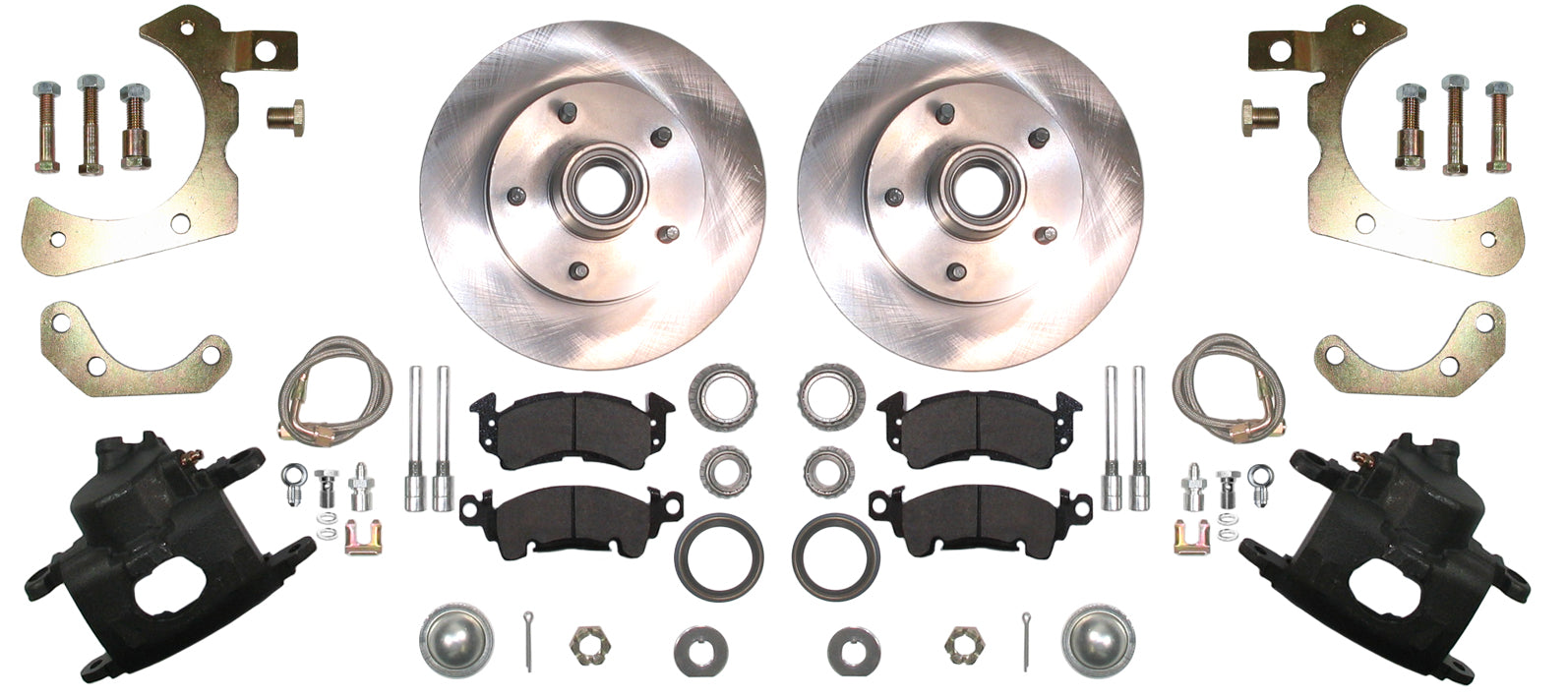

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.00" THICK X 11" O.D. 1-PIECE ROTORS/HATS
  • 5 X 4.75" BOLT PATTERN
  • 7/16" STUDS
• DISC BRAKE CALIPER BRACKETS
  • DESIGNED TO BOLT DIRECTLY TO THE ORIGINAL SPINDLES
• D52 1-PISTON CAST-IRON CALIPERS
• SEMI-METALLIC, HIGH-FRICTION BRAKE PADS
• CALIPER SLIDE PIN BOLTS WITH SLEEVES
• STEEL BRAIDED BRAKE LINE KIT WITH FITTINGS TO CONNECT TO CALIPERS AND CONNECT TO STOCK HARD LINES
• WHEEL BEARINGS AND RACES
• SEALS, WASHERS, NUTS, COTTER PINS, & DUST CAPS
