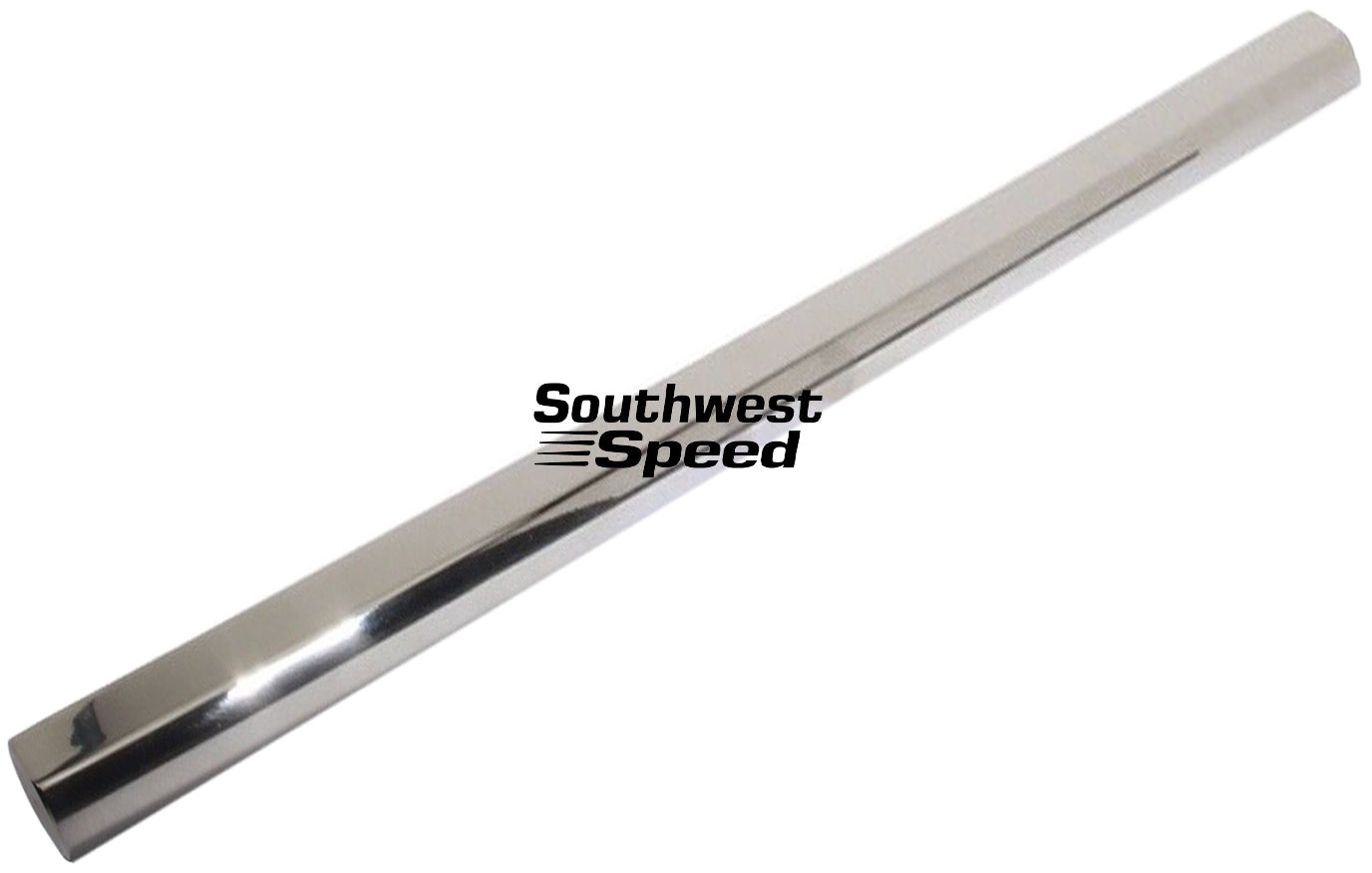

STEERING SHAFT,3/4 DD,CHROME PLATED,36"

STEERING SHAFT,3/4 DD,CHROME PLATED,36"

150-2885

$49.99
$49.99
View full details
  • BRAND NEW 3/4" DOUBLE D UNIVERSAL CUT-TO-LENGTH INTERMEDIATE STEERING SHAFT THAT IS 36 INCHES LONG, & FEATURES AN NICKEL PLATED FINISH.

  • SOUTHWEST SPEED UNIVERSAL STEERING SHAFTS ARE MANUFACTURED USING THE HIGHEST QUALITY MATERIALS AVAILABLE, AND ARE BUILT TO HANDLE THE ABUSE FROM HIGH HORSEPOWER APPLICATIONS. THIS IS AN INEXPENSIVE WAY OF REPLACING YOUR STEERING SHAFT OR ADDING A STEERING SHAFT. THIS SHAFT CAN BE CUT DOWN TO THE CORRECT LENGTH YOU NEED. WE OFFER A VARIATION OF DIFFERENT LENGTH STEERING SHAFTS TO FIT NEARLY EVERY APPLICATION, REFER TO THE CHART BELOW TO DECIDE WHICH UNIVERSAL JOINT WILL FIT YOUR APPLICATION.

    • FEATURES:

    • NICKEL PLATED FINISH
    • CUT-TO-LENGTH INTERMEDIATE STEERING SHAFT DESIGNED TO FIT MOST APPLICATIONS
    • FABRICATED FROM CNC MACHINED HIGH STRENGTH STEEL
    • 3/4" DOUBLE D STEERING SHAFT
    • 36 INCHES LONG BUT CAN BE CUT SHORTER IF NEEDED
    • BUILT TO HANDLE THE ABUSE FROM RACING APPLICATIONS

    SPECIFICATIONS:

    • STEERING SHAFT LENGTH: 36"
    • FINISH: NICKEL PLATED
    • MATERIAL TYPE: STEEL
    • STEERING SHAFT STYLE: 3/4" DOUBLE D
    • STEERING SHAFT DIAMETER: 3/4" O.D.

    NOTE: IT IS ALWAYS A GOOD IDEA TO REPLACE THE UNIVERSAL JOINT WHEN DOING ANY WORK ON THE STEERING SYSTEM.

    IN ORDER TO DETERMINE WHICH U-JOINT YOU WILL NEED, YOU CAN FOLLOW THESE STEPS:

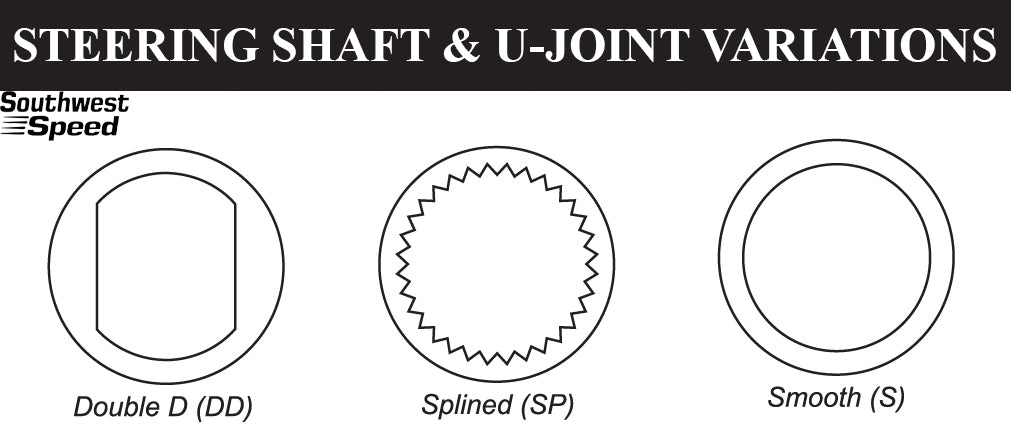

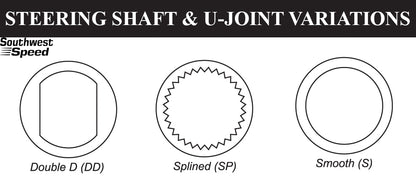

    • DETERMINE WHICH SPLINE IS ON YOUR STEERING BOX OR RACK. YOU CAN MEASURE AND COUNT, OR USE THE CHART SHOWN BELOW
    • THEN DETERMINE WHICH STYLE STEERING SHAFT YOU WILL NEED & MEASURE THE DISTANCE FROM THE COLUMN TO THE STEERING GEAR BOX TO DETERMINE WHICH LENGTH SHAFT YOU WILL NEED.
    • THEN, VERIFY WHICH STYLE STEERING SHAFT YOU HAVE, OR WILL NEED FOR YOUR SPECIFIC APPLICATION (3/4" SMOOTH, 3/4" DOUBLE D, OR 1" DOUBLE D). THE STEERING SHAFT IS THIS LISTING IS AN 3/4" DOUBLE D.
    Fixed Steering Shafts
