MICRO,MINI-SPRINT 600 BRAKE & THROTTLE PEDAL SYSTEM WITH FORWARD WIL CYLINDER

BRAND NEW SOUTHWEST SPEED MICRO/MINI SPRINT BRAKE & THROTTLE PEDAL SYSTEM, FORWARD MOUNT, WITH WILWOOD REMOTE RESERVOIR MASTER CYLINDER (PART #001-3114)

AS OPPOSED TO THE REVERSE MOUNT SYSTEM (WITH THE MASTER CYLINDER BEHIND THE PEDAL), THIS FORWARD MOUNT SYSTEM IS DESIGNED TO GET THE CYLINDER OUT IN FRONT OF THE PEDAL TO KEEP IT AWAY FROM THE DRIVERS FEET. YOU NEED TO MAKE SURE YOUR CHASSIS HAS ENOUGH ROOM TO MOUNT THE SYSTEM IN THIS MANNER. THE REVERSE MOUNT SYSTEM IS AVAILABLE HERE FOR CHASSIS WITH TIGHT FLOOR BOARDS.

FEATURES:

• THIS REVOLUTIONARY PEDAL SYSTEM ALLOWS FOR MAXIMUM PEDAL ADJUSTMENT, WHICH ELIMINATES THE WELDING, CUTTING, AND HEADACHE THAT COMES WITH THE CHANGING SIZE OF YOUR DRIVER
• THE LIGHTWEIGHT ALUMINUM RAILS ARE 17 3/4" LONG AND HAVE 18 HOLES THAT GIVE A FULL 14" OF FORWARD AND BACK PEDAL ADJUSTMENT
• THIS SYSTEM CONFIGURES TO THE DRIVER IN A MATTER OF MINUTES
• IF YOU ALREADY HAVE ONE OF THESE WILWOOD MASTER CYLINDERS, WE HAVE THIS SYSTEM AVAILABLE WITHOUT THE CYLINDER HERE.
• WE ALSO HAVE A SIMILAR SYSTEM AVAILABLE WITH A MCP MASTER CYLINDER HERE.
• CAN BE USED IN ALMOST ALL MICRO-SPRINT CHASSIS THAT HAVE ENOUGH ROOM FOR FORWARD MOUNTING

INCLUDES:

• WILWOOD MASTER CYLINDER
  • 7/8" BORE
  • REMOTE RESERVOIR VERSION
  • INCLUDES BOTH SMALL & LARGE SIZE RESERVOIRS, WHICH CAN BE MOUNTED DIRECTLY ON THE MASTER CYLINDER, OR REMOTELY MOUNTED FOR MORE CONVENIENT SERVICE ACCESS
• BRAKE PEDAL
• THROTTLE PEDAL
• BRAKE AND THROTTLE ALUMINUM ADJUSTMENT RAILS
• MASTER CYLINDER MOUNTING BRACKET FOR WILWOOD MASTER CYLINDERS
• MASTER CYLINDER BRACKET SPACER
• THROTTLE CABLE STOP
• THROTTLE STOP AND CABLE MOUNTING BRACKET
• 4 WELD TABS TO ATTACH SYSTEM TO CHASSIS

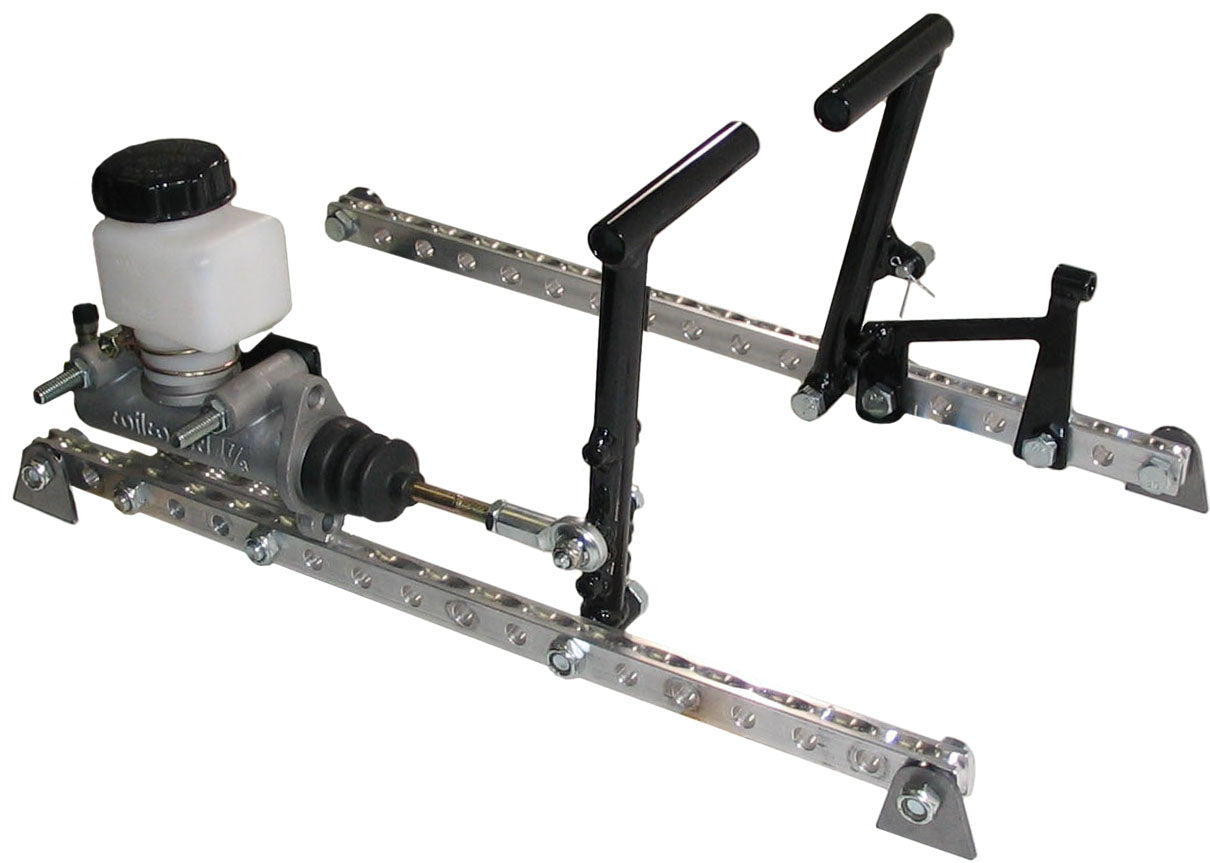

• ALL BOLTS, NUTS, AND HARDWARE SHOWN IN THE PICTURE
